EXIT SIGNS SELF DIAGNOSTIC

EXIT V WH SD

NAED: 66072
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Areas of application
  • Emergency illumination of escape routes
  • Antipanic lighting
  • Offices, education, public buildings
Product features
  • Slim profile, lightweight, easy to install exit sign that replaces traditional incandescent and fluorescent exit signs
  • Bright, energy-efficient LEDs provide energy savings up to 97%
  • Injection-molded thermoplastic housing
  • Universal mounting
  • 6500K color temperature
  • CRI > 80
  • Offered in watts up to 3.2W
  • Optional self-diagnostic and remote capable
  • Both Red and Green letters shipped in exit box (running man is green only)
Product information bulletin
LEDLUM231 LEDVANCE LUMINAIRES EXIT AND EMERGENCY LIGHTING
PDF (1.47 MB)
Electrical data
Nominal wattage 1.20 W
Nominal voltage 120…277 V
Photometrical data
Luminous flux 2 lm
Luminous efficacy 2 lm/W
Color temperature 6500 K
Color rendering index Ra 80
Dimensions & Weight
Length 295.00 mm
Height 182.00 mm
Width 46.00 mm
Product weight 700.00 g
Materials & Colors
Product color White
Housing color White
Mercury content 0.0 mg
Application & Mounting
Dimmable No
Mounting type Surface
Replaceable light source No
Certificates & Standards
Replaceable light source (EPREL) Not replaceable
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
0046135660726 Folding box
1		 308 mm x 196 mm x 65 mm 858.00 g 3.92 dm³
4099854335051 Shipping box
6		 395 mm x 320 mm x 225 mm 5406.00 g 28.44 dm³

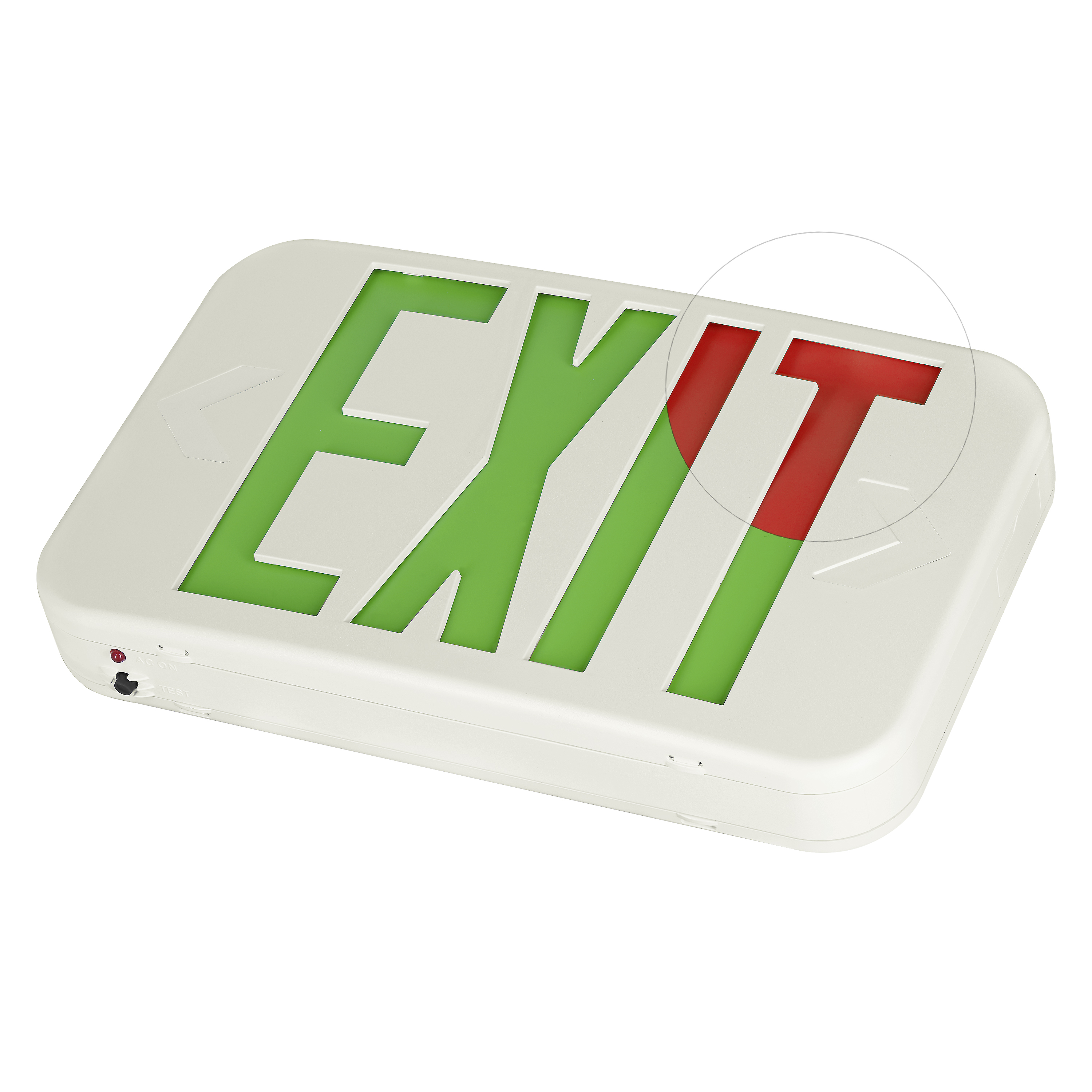

Product image: white background, diagonal
EXIT AND EMERGENCY LIGHTING
JPG (2.05 MB)

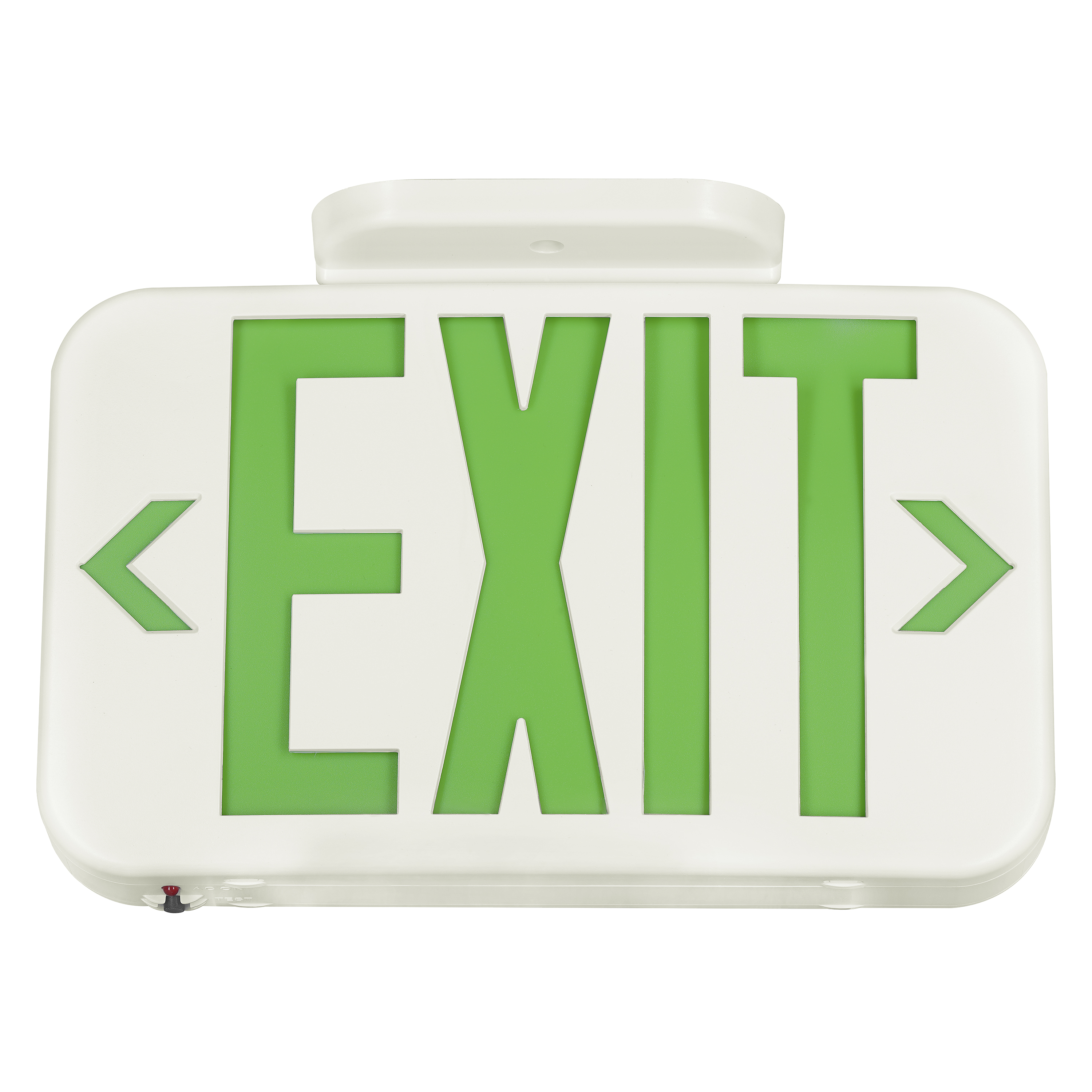

Product image: white background, horizontal
EXIT AND EMERGENCY LIGHTING
JPG (3.08 MB)

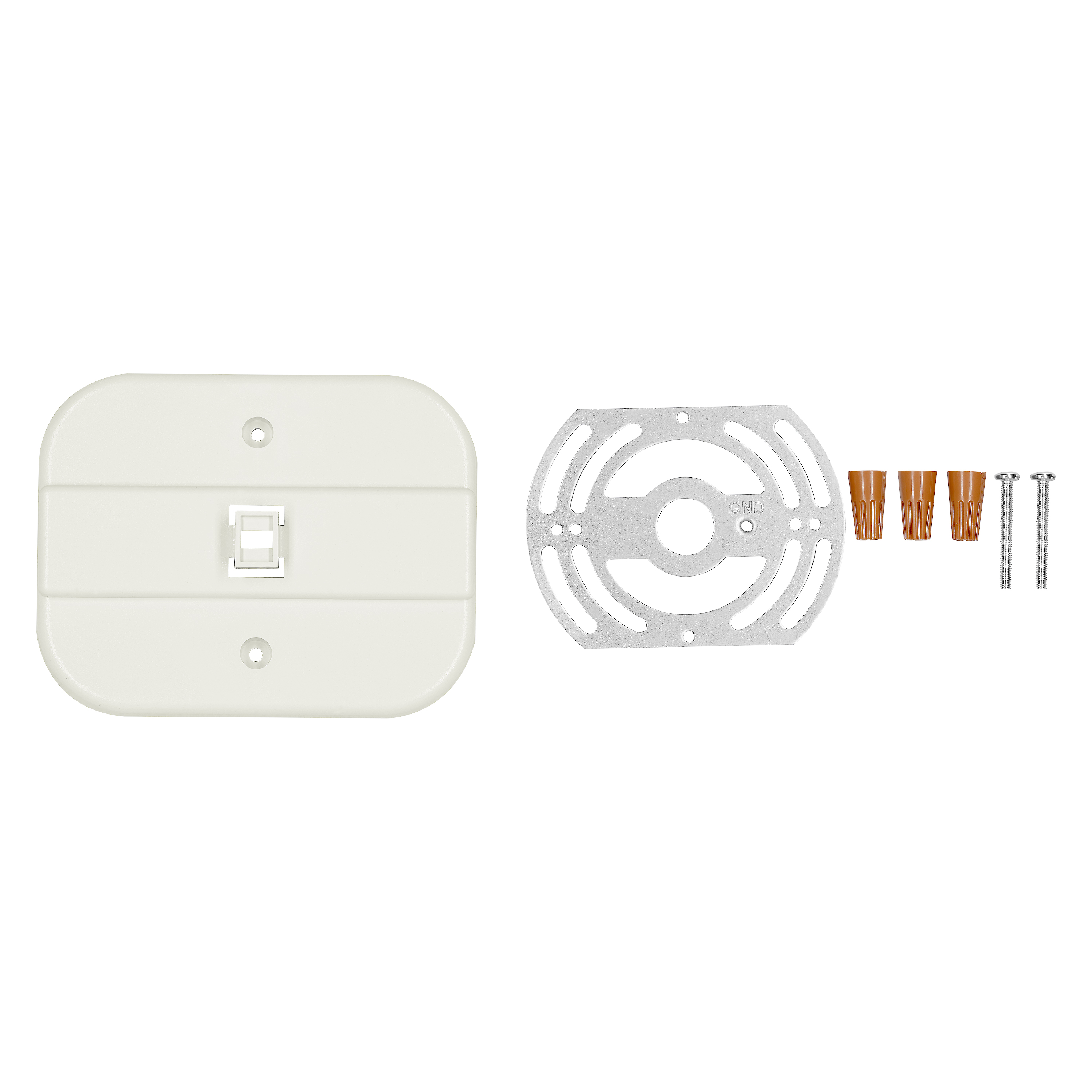

Product image: white background, with accessory, alternative image
EXIT AND EMERGENCY LIGHTING
JPG (1.32 MB)
IES file (IES)
VALUE CLASS EXIT AND EMERGENCY
ZIP (33.87 KB)
