PANEL DUAL SELECTABLE UNH AND LOW WATTAGE
PANEL DUAL SELECTABLE LOW WATTAGE 1x4 18W 4/CS 1/SKU UNV
NAED: 62700
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Offices
- Schools
- Hospitality
- Retail
Product features
- Backlit technology that offers even lighting distribution without shadowing
- Selectable CCT: 3500/4000/5000K
- Selectable wattage and lumen outputs
- Low wattage versions for energy efficiency projects
- DLC Premium listed to maximize rebate opportunities
- Compatible with SYLVANIA emergency battery backup unit (EM ready)
- Up to 125 LPW
- PMMA lenses that do not yellow over time
- CRI > 80
- Energy savings up to 68 %
Product information bulletin
BACKLIT DUAL SELECTABLE AND LOW WATTAGE PANEL
BACKLIT DUAL SELECTABLE AND LOW WATTAGE PANEL
Electrical data
| Nominal wattage | 18.00 W |
| Nominal voltage | 120…277 V |
Photometrical data
| Luminous flux | 2400 lm |
| Luminous efficacy | 125 lm/W |
| Color temperature | 3500 … 5000 K |
| Color rendering index Ra | 80 |
Dimensions & Weight
| Length | 299.72 mm |
| Height | 43.18 mm |
| Width | 1214.12 mm |
| Product weight | 2400.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Aluminum|Steel |
| Mercury content | 0.0 mg |
Application & Mounting
| Dimmable | Yes |
| Type of dimming | 0-10V |
| Mounting type | Recessed/Suspended/Surface |
| Application environment | Indoor |
| Replaceable light source | No |
Certificates & Standards
| Replaceable light source (EPREL) | Not replaceable |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 0046135627002 | Folding box 1 |
52 mm x 1,223 mm x 318 mm | 2871.00 g | 20.22 dm³ |
| 10046135627009 | Shipping box 4 |
1,241 mm x 231 mm x 362 mm | 12636.00 g | 103.78 dm³ |

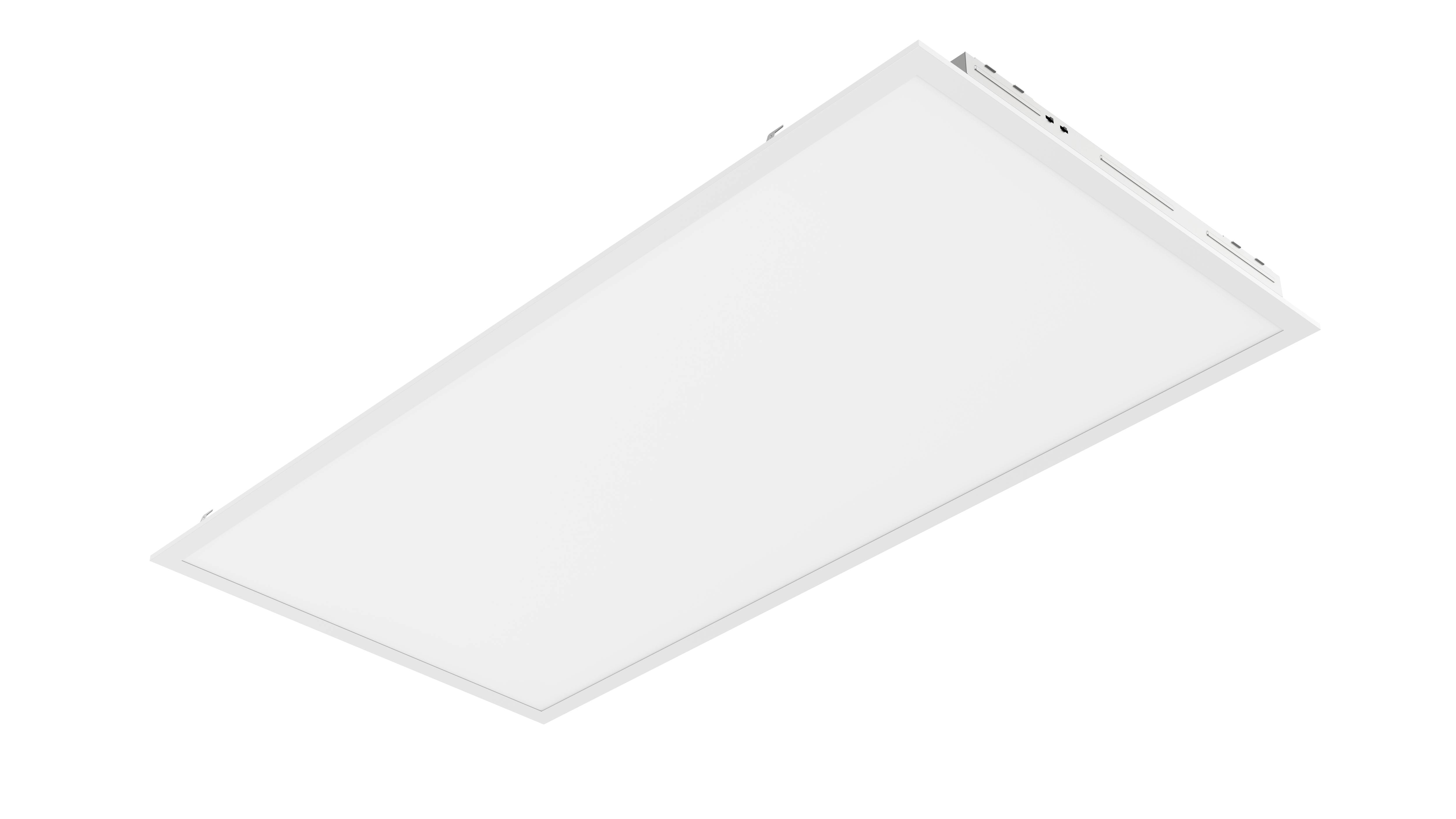

Product image: white background, diagonal
Back-Lit Panel 2x4
Back-Lit Panel 2x4
IES files (IES, additional)
PANELF3B .ies files
PANELF3B .ies files
