PANEL DUAL SELECTABLE UNH AND LOW WATTAGE
PANEL DUAL SELECTABLE LOW WATTAGE 2x2 36W 4/CS 1/SKU UNH
NAED: 62704
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Offices
- Schools
- Hospitality
- Retail
Product features
- Backlit technology that offers even lighting distribution without shadowing
- Selectable CCT: 3500/4000/5000K
- Selectable wattage and lumen outputs
- Low wattage versions for energy efficiency projects
- DLC Premium listed to maximize rebate opportunities
- Compatible with SYLVANIA emergency battery backup unit (EM ready)
- Up to 125 LPW
- PMMA lenses that do not yellow over time
- CRI > 80
- Energy savings up to 68 %
Product information bulletin
BACKLIT DUAL SELECTABLE AND LOW WATTAGE PANEL
BACKLIT DUAL SELECTABLE AND LOW WATTAGE PANEL
Electrical data
| Nominal wattage | 36.00 W |
| Nominal voltage | 120…347 V |
Photometrical data
| Luminous flux | 2500 … 4500 lm |
| Luminous efficacy | 125 lm/W |
| Color temperature | 3500 … 5000 K |
| Color rendering index Ra | 80 |
Dimensions & Weight
| Length | 605.00 mm |
| Height | 43.18 mm |
| Width | 605.00 mm |
| Product weight | 2400.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Aluminum|Steel |
| Mercury content | 0.0 mg |
Application & Mounting
| Type of connection | WAGO |
| Dimmable | Yes |
| Type of dimming | 0-10V |
| Mounting type | Recessed/Suspended/Surface |
| Application environment | Indoor |
| Replaceable light source | No |
Certificates & Standards
| Replaceable light source (EPREL) | Not replaceable |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 0046135627040 | Folding box 1 |
52 mm x 513 mm x 618 mm | 2856.00 g | 16.48 dm³ |
| 10046135627047 | Shipping box 4 |
631 mm x 231 mm x 644 mm | 12473.00 g | 93.87 dm³ |

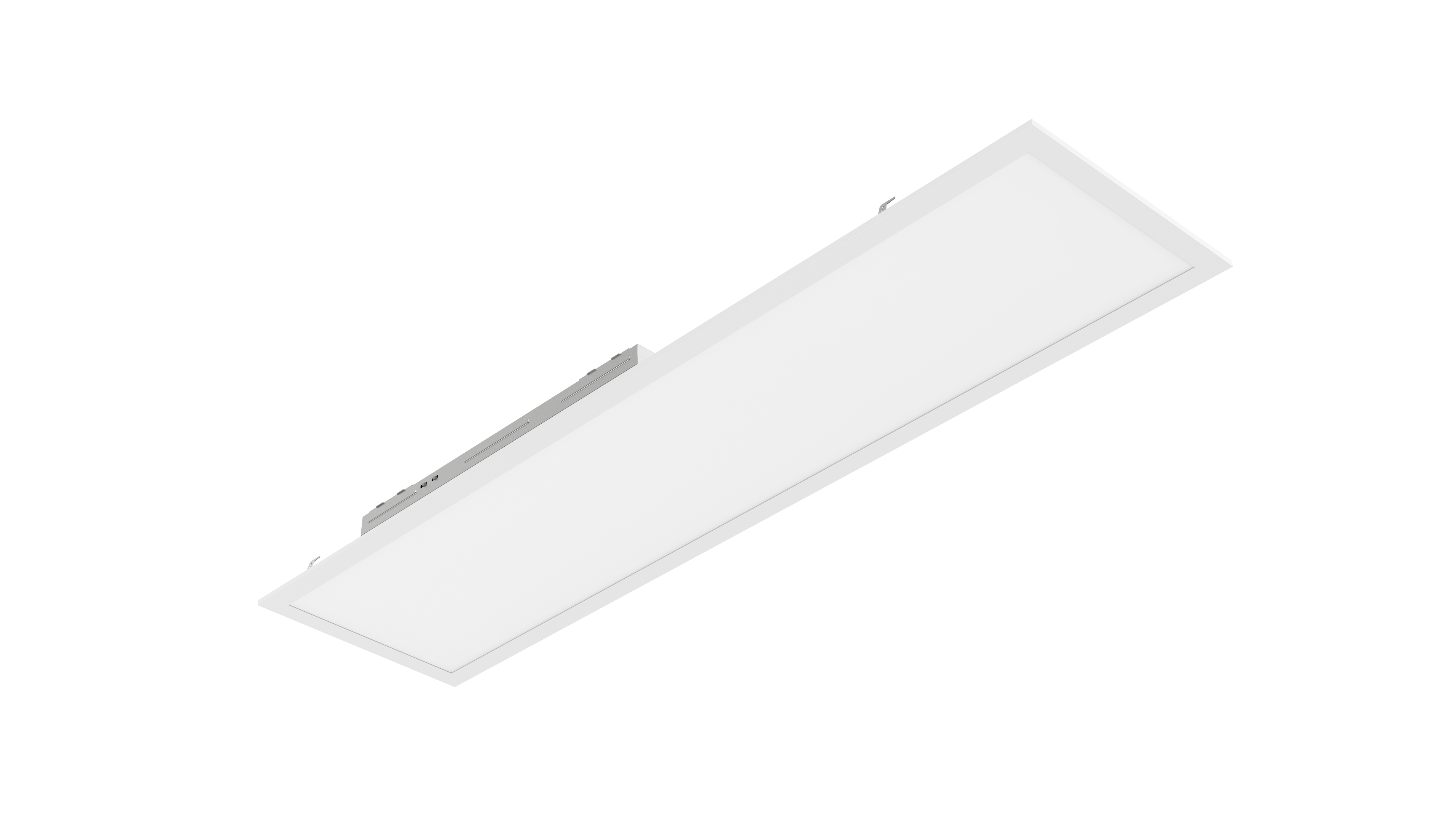

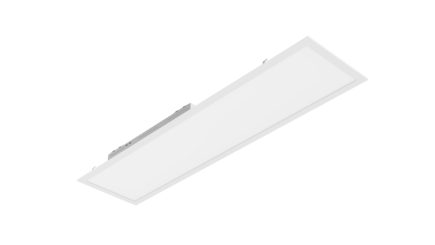

Product image: white background, diagonal
PANEL 1X4
PANEL 1X4
IES files (IES, additional)
PANEL3B/4BS .IES ZIP
PANEL3B/4BS .IES ZIP
