PRODUCT DETAILS
Areas of application
- Indoor applications
- Home offices & study rooms
- Bedrooms & living rooms
- Entryways & foyers
- Nurseries & children’s rooms
Product features
- Selectable CCTs: 2700/3000/3500/4000/5000K
- 0-10V phase-cut dimmable
- Sensor and integrated emergency battery backup available
- Easy installation – no additional hardware needed
- Lifetime (L70): up to 50,000 h
- No warm up time, instant on with full light and consistent lamp to lamp color
- Damp rated, indoor
Equipment / Accessories
- Mounting screws and mounting brackets included
Safety advice
- cETLus, RoHS, ENERGY STAR
- For indoor use only; not suitable for outdoor or wet locations
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Product information bulletin
Hi-PerformanceLED Saturn Ring Selectable
Hi-PerformanceLED Saturn Ring Selectable
Electrical data
| Nominal wattage | 15.00 W |
| Nominal voltage | 120 V |
Photometrical data
| Luminous flux | 1050 lm |
| Luminous efficacy | 70 lm/W |
| Color temperature | 2700 … 5000 K |
| Color rendering index Ra | 90 |
Dimensions & Weight
| Diameter | 304.80 mm |
| Height | 85.09 mm |
| Product weight | 530.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Polycarbonate (PC) |
| Mercury content | 0.0 mg |
Application & Mounting
| Dimmable | Yes |
| Type of dimming | PHASE CUT |
| Mounting type | Surface |
| Application environment | Indoor |
| Replaceable light source | No |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 0046135655753 | Folding box 1 |
98 mm x 329 mm x 330 mm | 797.00 g | 10.64 dm³ |
| 4058118200016 | Shipping box 4 |
415 mm x 342 mm x 345 mm | 4036.00 g | 48.97 dm³ |

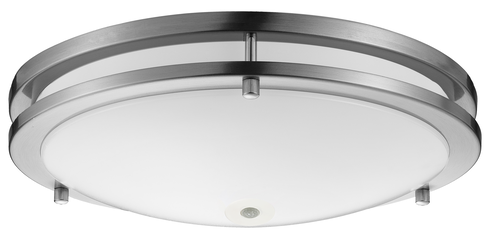

Product image: white background, horizontal
SATURN RING
SATURN RING
IES files (IES, additional)
Performance Class Puff Series .ies
Performance Class Puff Series .ies
