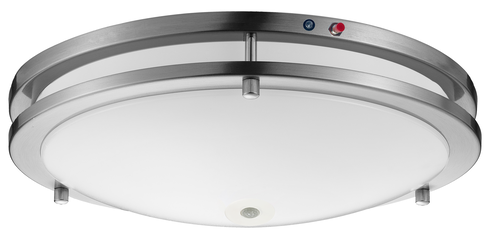

SYLVANIA Saturn Ring CCT Selectable

SATURN RING CCT SELECT 120-277V SENSOR EMBB

NAED: 65577
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Areas of application
  • Indoor applications
  • Home offices & study rooms
  • Bedrooms & living rooms
  • Entryways & foyers
  • Nurseries & children’s rooms
Product features
  • Selectable CCTs: 2700/3000/3500/4000/5000K
  • 0-10V phase-cut dimmable
  • Sensor and integrated emergency battery backup available
  • Easy installation – no additional hardware needed
  • Lifetime (L70): up to 50,000 h
  • No warm up time, instant on with full light and consistent lamp to lamp color
  • Damp rated, indoor
Equipment / Accessories
  • Mounting screws and mounting brackets included
Safety advice
  • cETLus, RoHS, ENERGY STAR
  • For indoor use only; not suitable for outdoor or wet locations
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
Product information bulletin
Hi-PerformanceLED Saturn Ring Selectable
PDF (415.28 KB)
Electrical data
Nominal wattage 24.00 W
Nominal voltage 120…277 V
Photometrical data
Luminous flux 1700 lm
Luminous efficacy 75 lm/W
Color temperature 2700 … 5000 K
Color rendering index Ra 90
Dimensions & Weight
Diameter 406.40 mm
Height 85.09 mm
Product weight 1100.00 g
Materials & Colors
Product color White
Housing color White
Body material Polycarbonate (PC)
Cover material Polycarbonate (PC)
Mercury content 0.0 mg
Application & Mounting
Dimmable Yes
Type of dimming 0-10V
Mounting type Surface
Application environment Indoor
Replaceable light source No
Certificates & Standards
Replaceable light source (EPREL) Not replaceable
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
0046135655777 Folding box
1		 106 mm x 427 mm x 428 mm 1394.00 g 19.37 dm³
4058118200030 Shipping box
4		 445 mm x 445 mm x 455 mm 6738.00 g 90.10 dm³
