TRACK HEAD 35W FL24 WHITE | TRACK LIGHTS CCT SELECTABLE | LEDVANCE

TRACK LIGHTS CCT SELECTABLE

TRACK HEAD 35W FL24 WHITE

NAED: 63200

Download data sheet

Our warranty conditions

PRODUCT DETAILS

Areas of application

Retail
Hospitality
Residential
Restaurants
Museums and Galleries

Product features

Sleek, modern integrated design
Rotate 0-350° around and/or 0-90° up/down
Selectable CCTs: 2700/3000/3500/4000K
CRI > 90

Safety advice

For single-circuit H-track only
Dimmable (Phase cut)

Product information bulletin
SELECTABLE TRACK LIGHTS

Electrical data

Nominal wattage	35.00 W
Nominal voltage	120 V

Photometrical data

Luminous flux	2400 lm
Luminous efficacy	69 lm/W
Color temperature	2700…4000 K
Color rendering index Ra	90

Dimensions & Weight

Diameter	85.09 mm
Height	250.19 mm
Product weight	1000.00 g

Materials & Colors

Product color	White
Housing color	White
Body material	Aluminum
Mercury content	0.0 mg

Application & Mounting

Dimmable	Yes
Type of dimming	PHASE CUT
Mounting type	Surface
Replaceable light source	No

Certificates & Standards

Replaceable light source (EPREL)

Not replaceable

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
0046135632006	Folding box 1	300 mm x 104 mm x 110 mm	1099.00 g	3.43 dm³
4099854081019	Shipping box 4	315 mm x 225 mm x 235 mm	4754.00 g	16.66 dm³

Product image	Product name	EAN
	TRACK ACCESSORIES 8FT RAIL WHITE	0046135662362
	TRACK ACCESSORIES 8FT RAIL BLACK	0046135662379
	TRACK ACCESSORIES I-CONNECTOR BLACK	0046135631887
	TRACK ACCESSORIES STRAIGHT CONNECTOR BLACK	0046135631894
	TRACK ACCESSORIES T-CONNECTOR BLACK	0046135631917
	TRACK ACCESSORIES L-CONNECTOR BLACK	0046135631900
	TRACK ACCESSORIES X-CONNECTOR BLACK	0046135631924
	TRACK ACCESSORIES 2FT RAIL WHITE	0046135631757
	TRACK ACCESSORIES 4FT RAIL WHITE	0046135631764
	TRACK ACCESSORIES POWER SUPPLY CAP WHITE	0046135631771
	TRACK ACCESSORIES END CAP WHITE	0046135631788
	TRACK ACCESSORIES I-CONNECTOR WHITE	0046135631795
	TRACK ACCESSORIES STRAIGHT CONNECTOR WHITE	0046135631801
	TRACK ACCESSORIES L-CONNECTOR WHITE	0046135631818
	TRACK ACCESSORIES T-CONNECTOR WHITE	0046135631825
	TRACK ACCESSORIES X-CONNECTOR WHITE	0046135631832
	TRACK ACCESSORIES 2FT RAIL BLACK	0046135631849
	TRACK ACCESSORIES 4FT RAIL BLACK	0046135631856
	TRACK ACCESSORIES POWER SUPPLY CAP BLACK	0046135631863
	TRACK ACCESSORIES END CAP BLACK	0046135631870

Beauty Shot

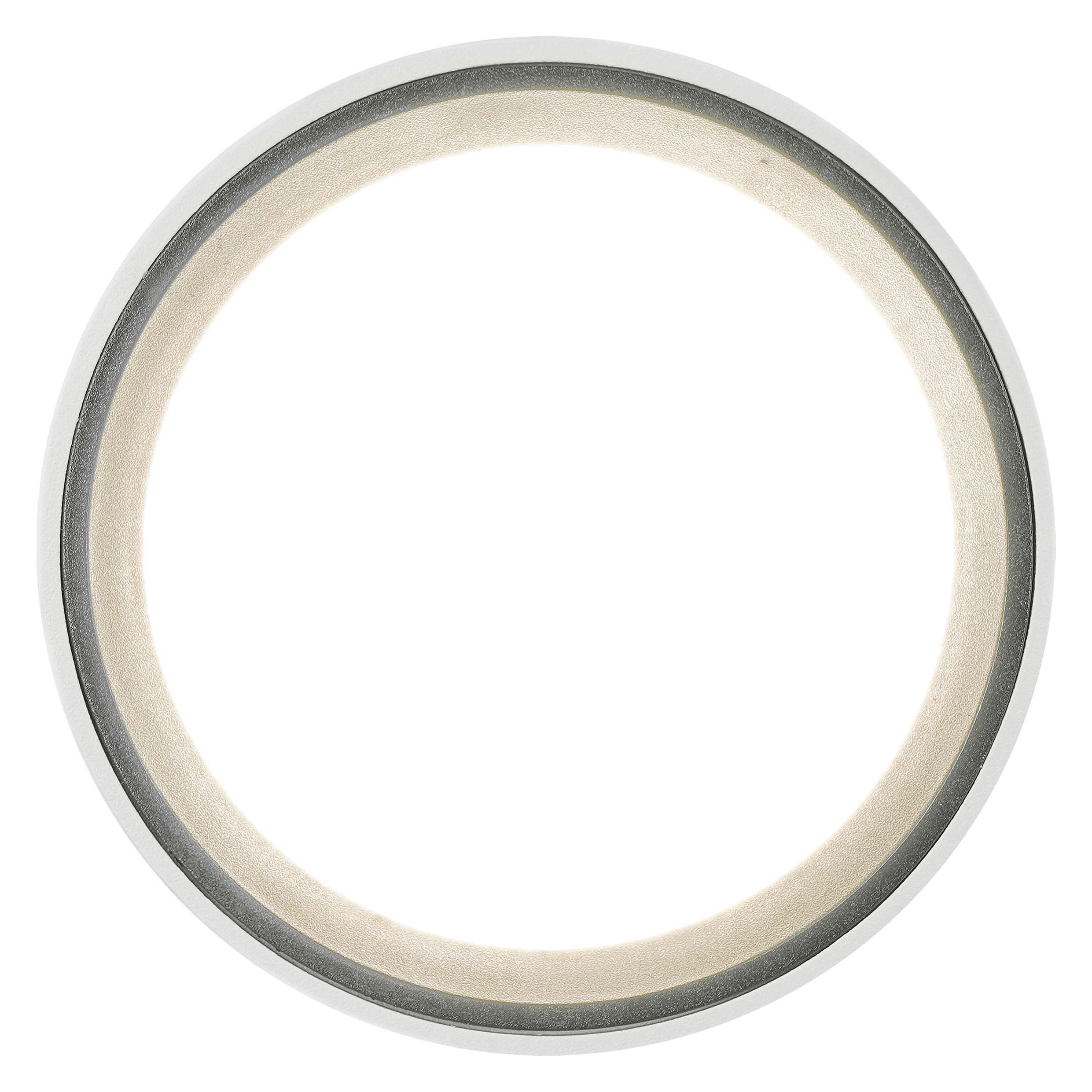

LEDVANCE Performance Class Track Light, 35W
