PRODUCT DETAILS

Product description

Areas of application

• Building facades
• Entryways
• Wall washing

Product features

• OPTI-SELECT: narrow, medium and wide beam angles, adjustable via switch
• Up, down, or up + down light modes
• Up to 125 LPW
• Selectable CCTs: 3000/4000/5000K
• CRI > 80
• Selectable wattage and lumen outputs
• Integrated photocell that can be disabled in the field

Test

Extended installation guide
OPTISELECT CYLINDER INSTALL MANUAL

PDF (3.32 MB)

Product information bulletin
LEDLUM224 LEDVANCE LUMINAIRES OPTI-SELECT CYLINDER

PDF (1.52 MB)

Technical data

Electrical data

Nominal wattage	10.00 W
Nominal voltage	120…347 V

Photometrical data

Luminous flux	550 … 1100 lm
Luminous efficacy	110 lm/W
Color temperature	3000 … 5000 K
Color rendering index Ra	80

Dimensions & Weight

Diameter	76.20 mm
Product weight	2500.00 g

Materials & Colors

Product color	Bronze
Housing color	Bronze
Body material	Aluminum
Mercury content	0.0 mg

Application & Mounting

Dimmable	Yes
Type of dimming	0-10V
Mounting type	Surface
Application environment	Outdoor
Replaceable light source	No

Packaging information

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
0046135662829	Folding box 1	155 mm x 128 mm x 246 mm	2575.00 g	4.88 dm³
4099854401619	Shipping box 6	404 mm x 330 mm x 274 mm	15909.00 g	36.53 dm³

Product images and graphics

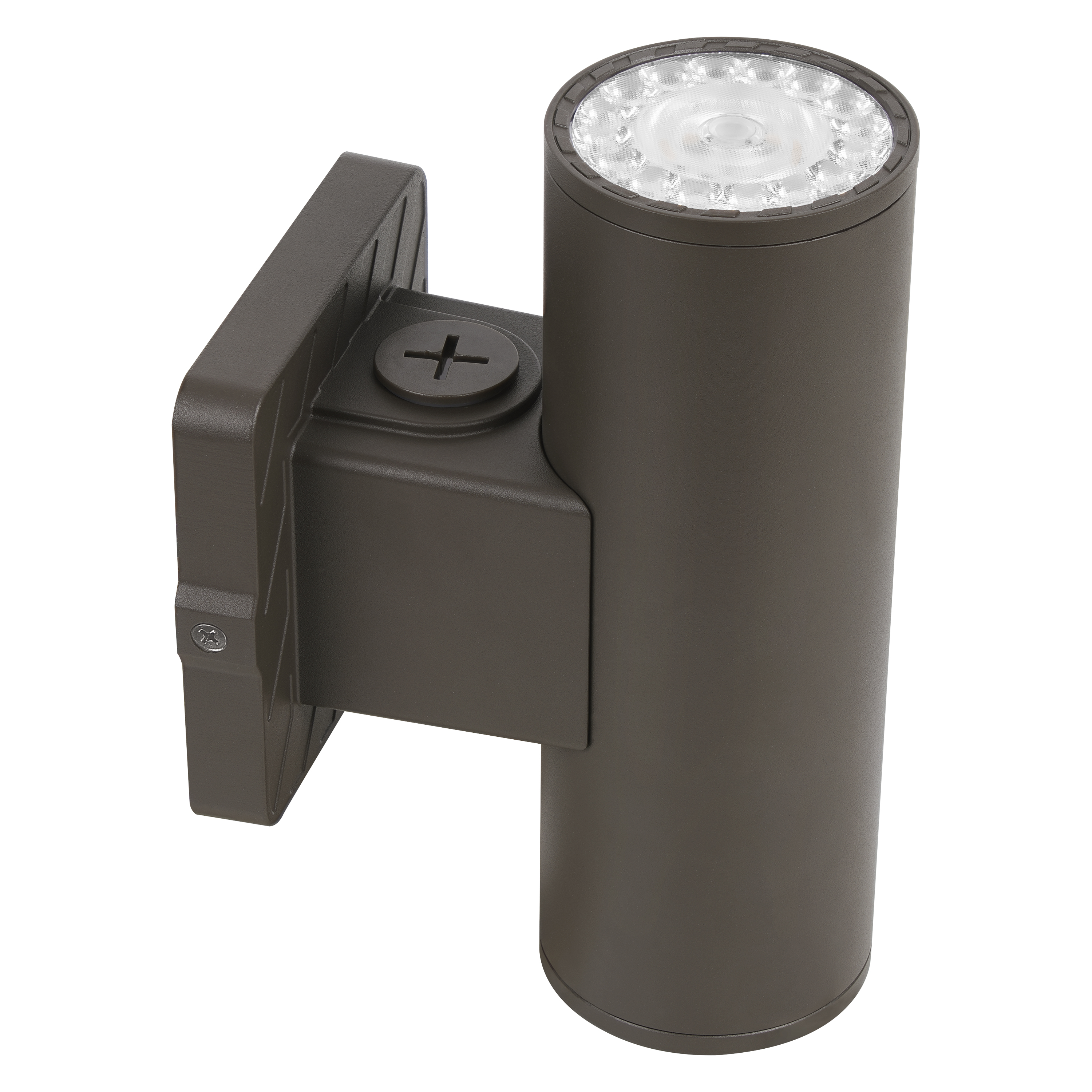

Product image: white background, diagonal with LEDVANCE logo
CYLINDER OPTISELECT 3" BRONZE

JPG (2.55 MB)

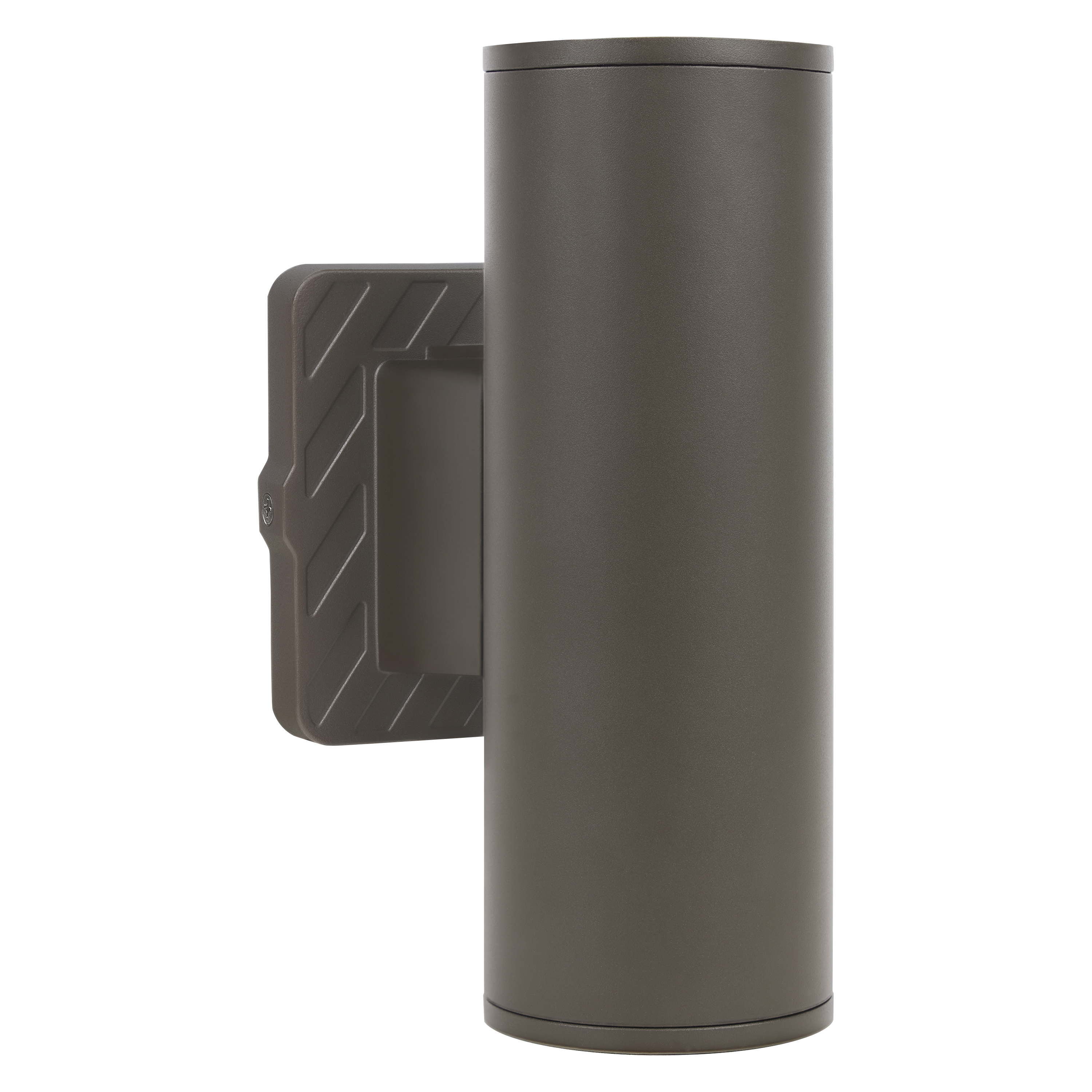

Product image: white background, diagonal, alternative image
CYLINDER OPTISELECT 3" BRONZE

JPG (2.64 MB)

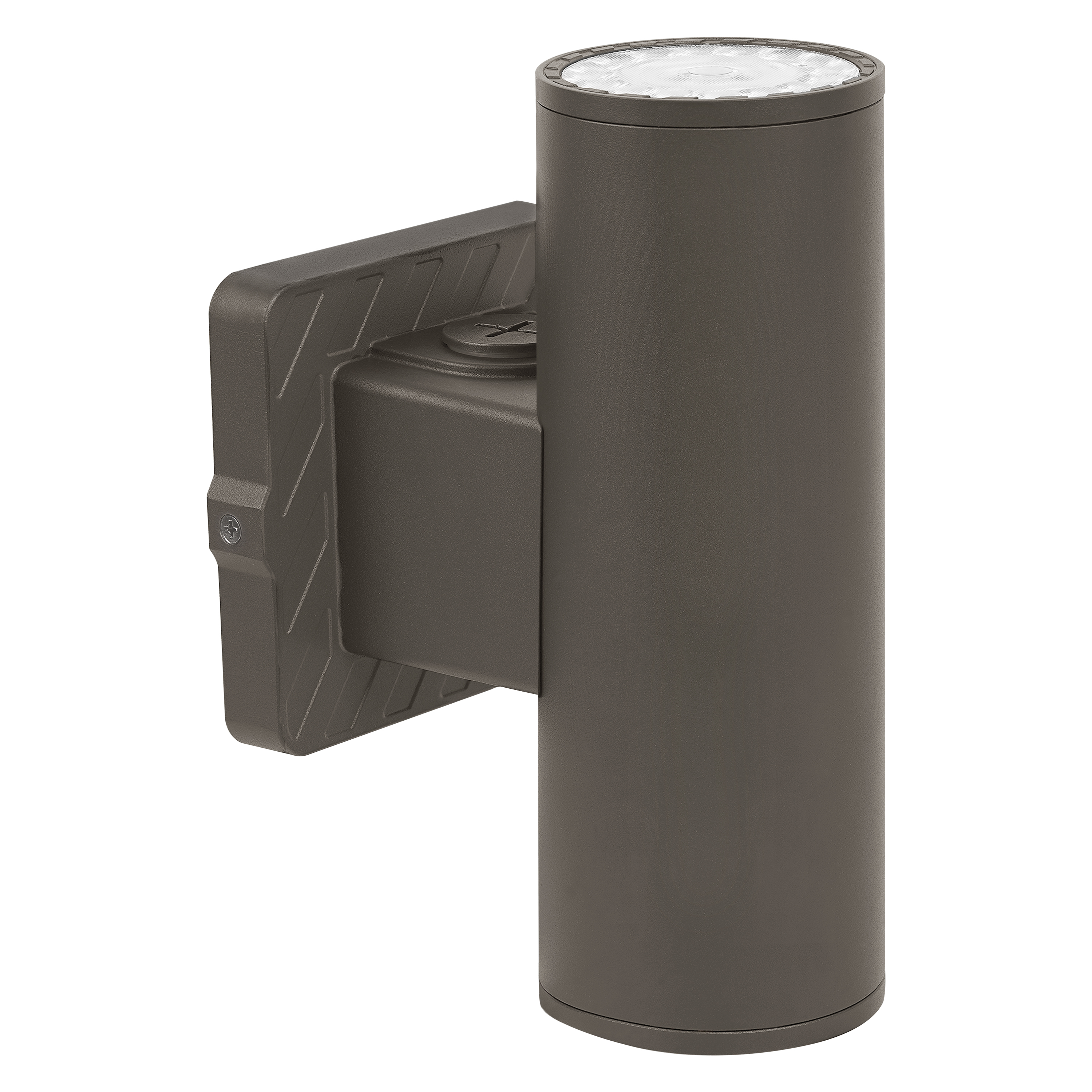

Product image: white background, upright
CYLINDER OPTISELECT 3" BRONZE

JPG (2.21 MB)

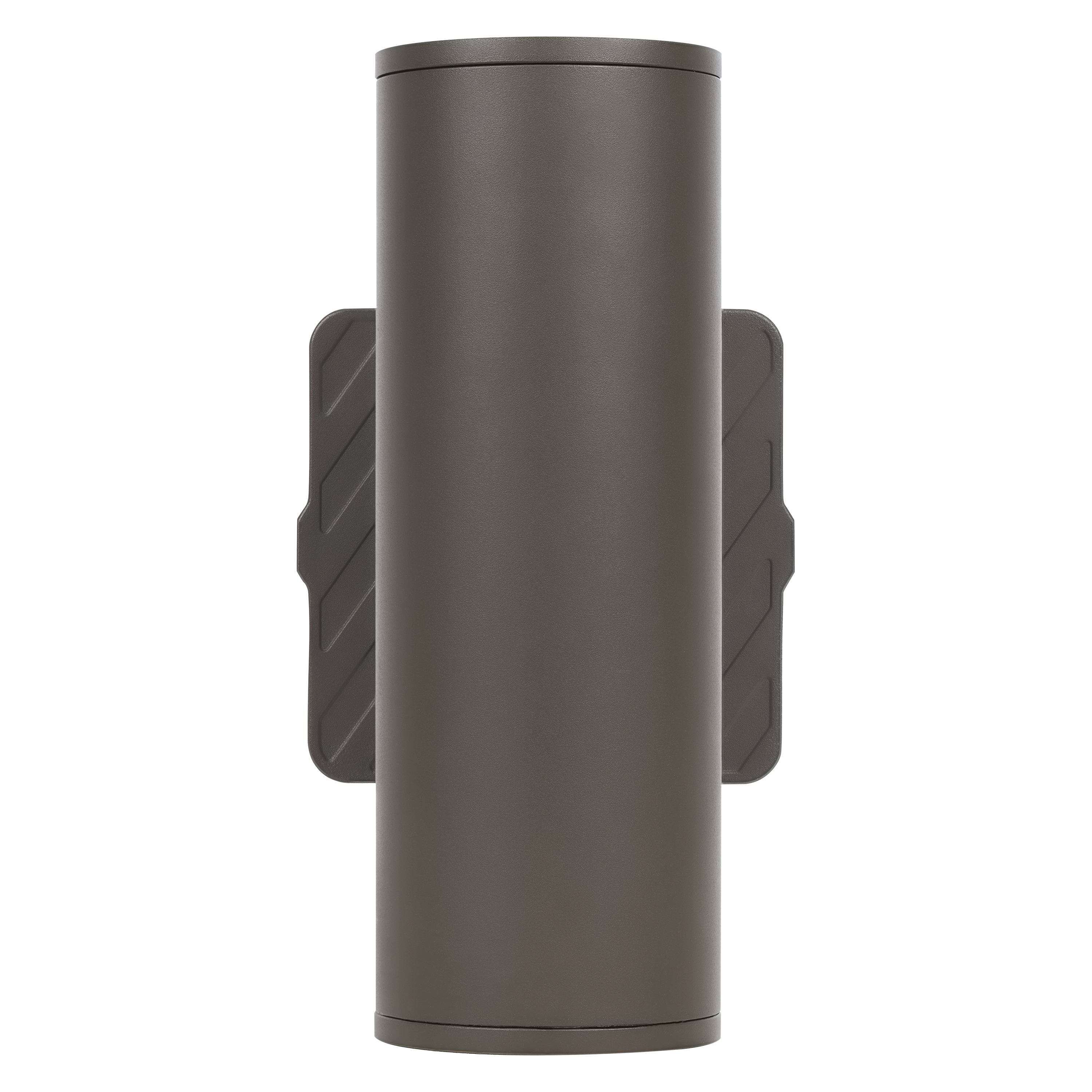

Product image: white background, upright, alternative image
CYLINDER OPTISELECT 3" BRONZE

JPG (2.21 MB)

Photometric and lighting design files

IES file (IES)
CYLINDER OPTISELECT IES SPDX

ZIP (36.65 MB)
