PRODUCT DETAILS

Product description

Areas of application

• Building facades
• Entryways
• Wall washing

Product features

• OPTI-SELECT: narrow, medium and wide beam angles, adjustable via switch
• Up, down, or up + down light modes
• Up to 125 LPW
• Selectable CCTs: 3000/4000/5000K
• CRI > 80
• Selectable wattage and lumen outputs
• Integrated photocell that can be disabled in the field

Test

Extended installation guide
OPTISELECT CYLINDER INSTALL MANUAL

PDF (3.32 MB)

Product information bulletin
LEDLUM224 LEDVANCE LUMINAIRES OPTI-SELECT CYLINDER

PDF (1.52 MB)

Technical data

Electrical data

Nominal wattage	20.00 W
Nominal voltage	120…347 V

Photometrical data

Luminous flux	1100 … 2200 lm
Luminous efficacy	110 lm/W
Color temperature	3000 … 5000 K
Color rendering index Ra	80

Dimensions & Weight

Diameter	101.60 mm
Product weight	2050.00 g

Materials & Colors

Product color	Bronze
Housing color	Bronze
Body material	Aluminum
Mercury content	0.0 mg

Application & Mounting

Dimmable	Yes
Type of dimming	0-10V
Mounting type	Surface
Application environment	Outdoor
Replaceable light source	No

Packaging information

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
0046135662836	Folding box 1	185 mm x 141 mm x 299 mm	3658.00 g	7.80 dm³
4099854401626	Shipping box 6	443 mm x 390 mm x 320 mm	14651.00 g	55.28 dm³

Product images and graphics

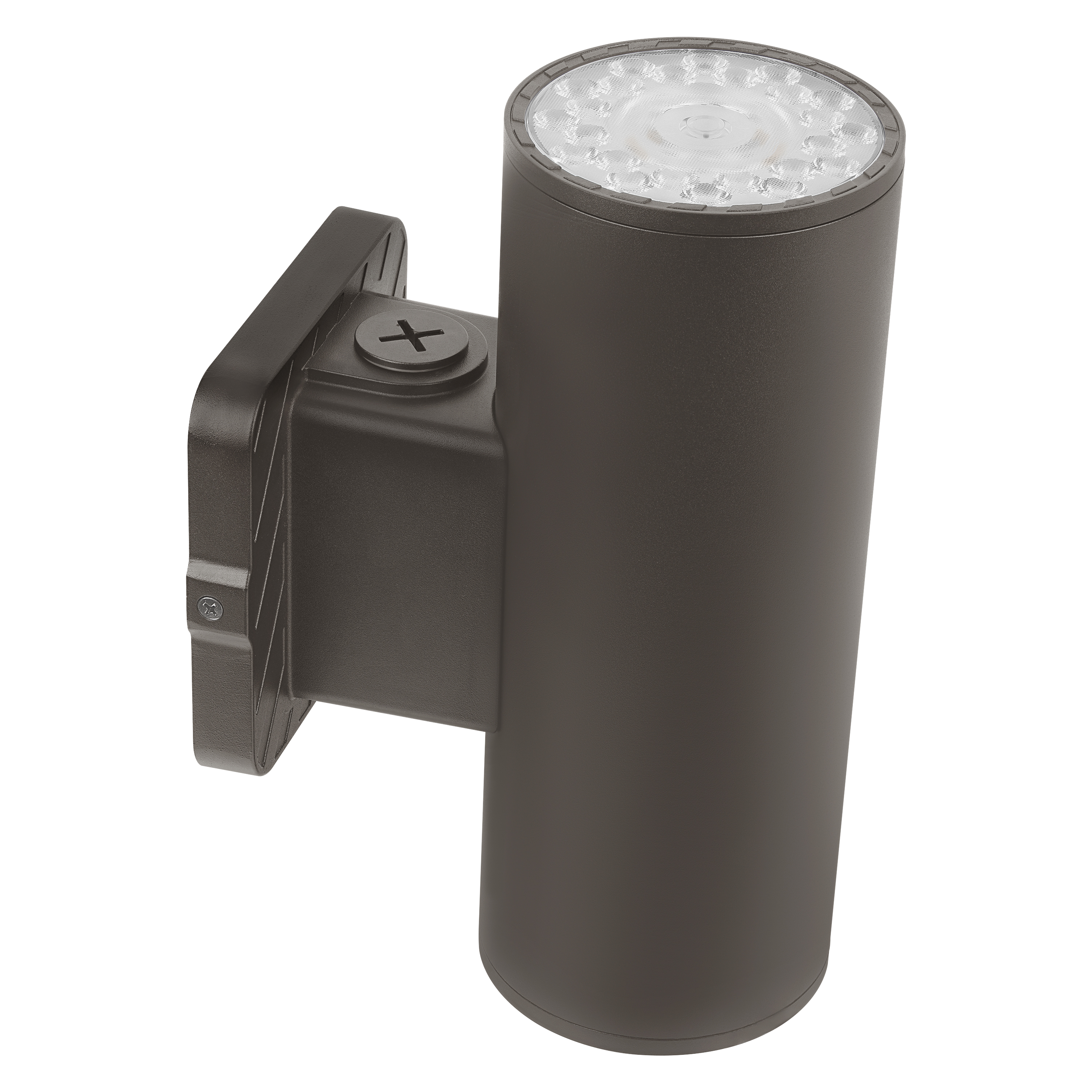

Product image: white background, diagonal with LEDVANCE logo
CYLINDER OPTISELECT 4" BRONZE

JPG (2.69 MB)

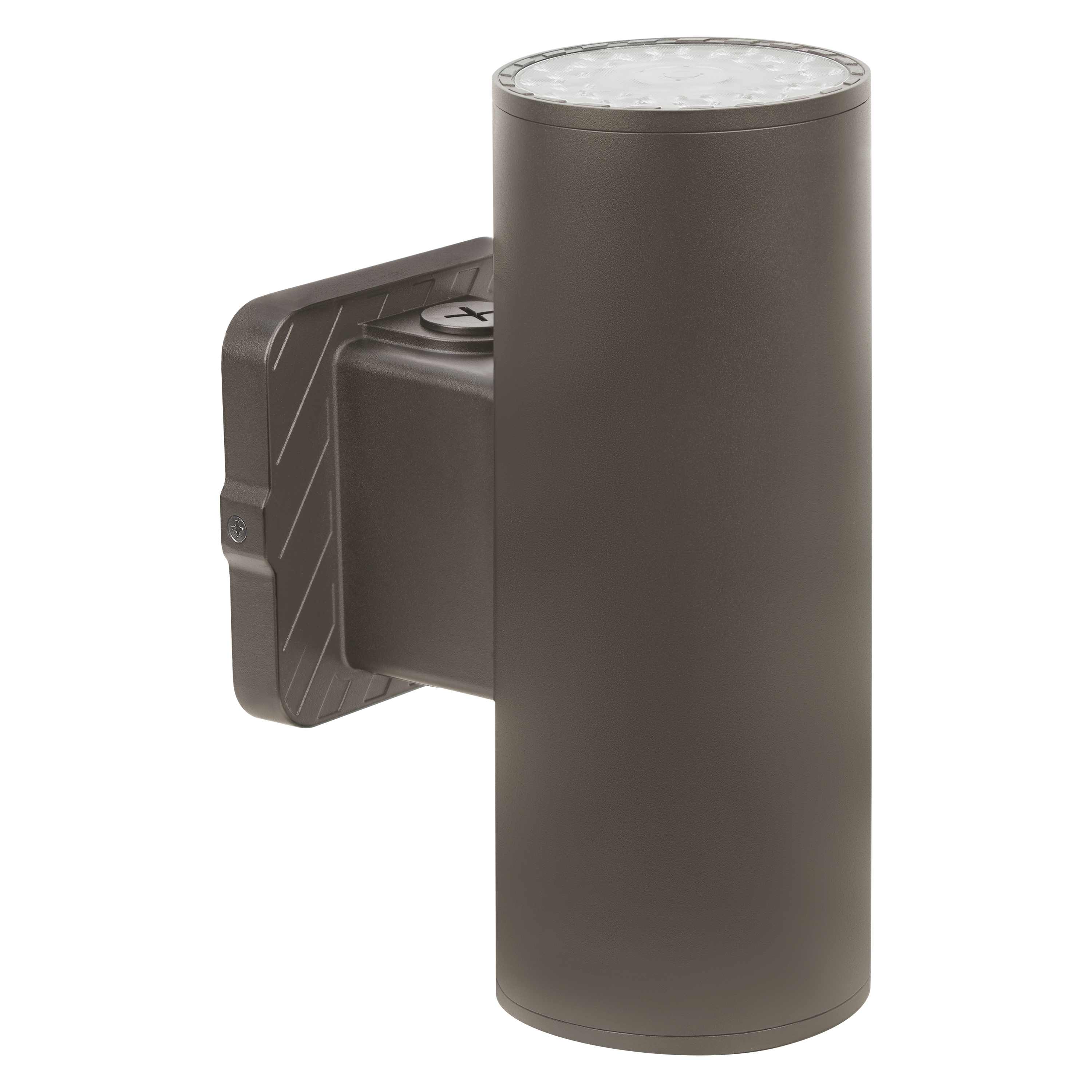

Product image: white background, diagonal, alternative image
CYLINDER OPTISELECT 4" BRONZE

JPG (2.5 MB)

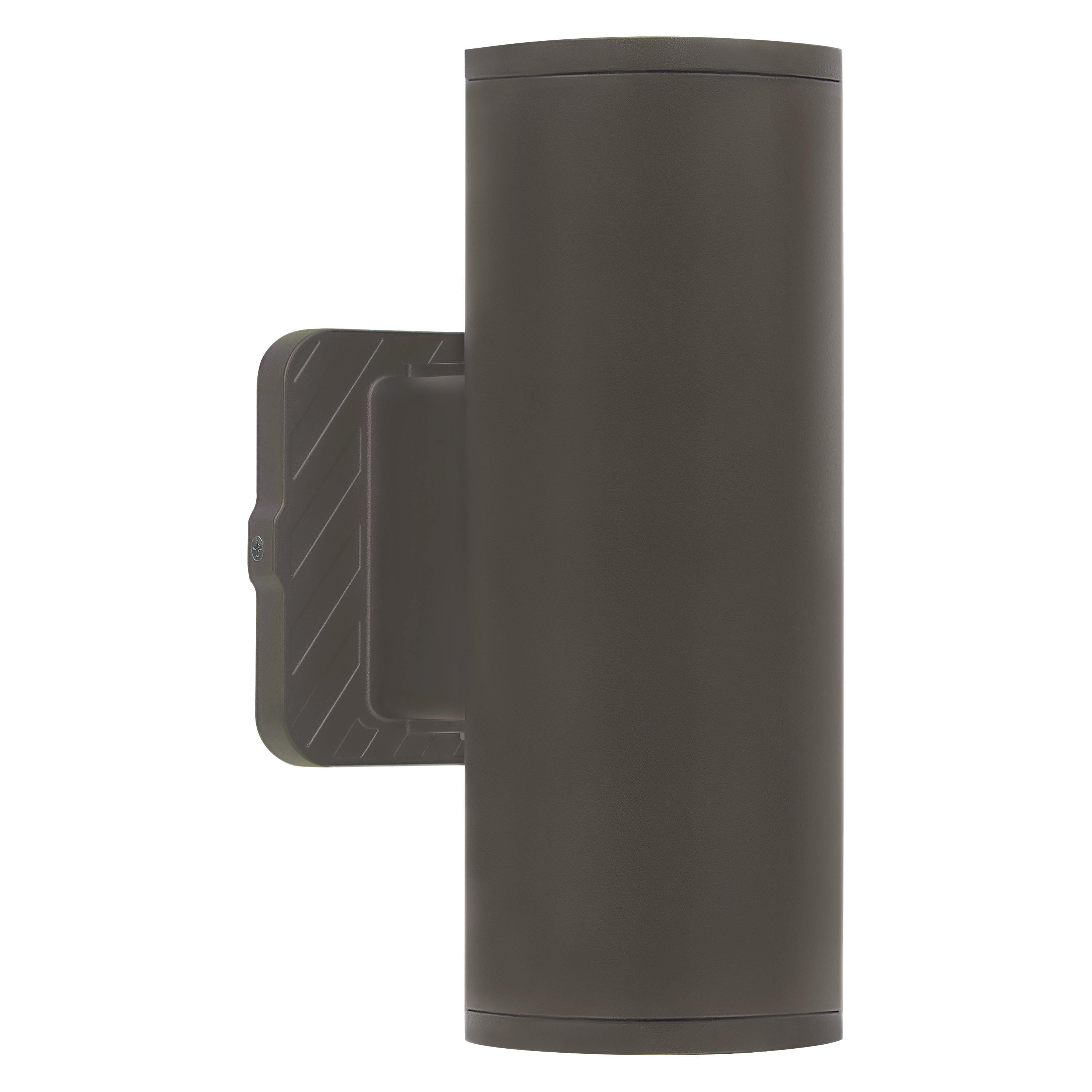

Product image: white background, upright
CYLINDER OPTISELECT 4" BRONZE

JPG (2.34 MB)

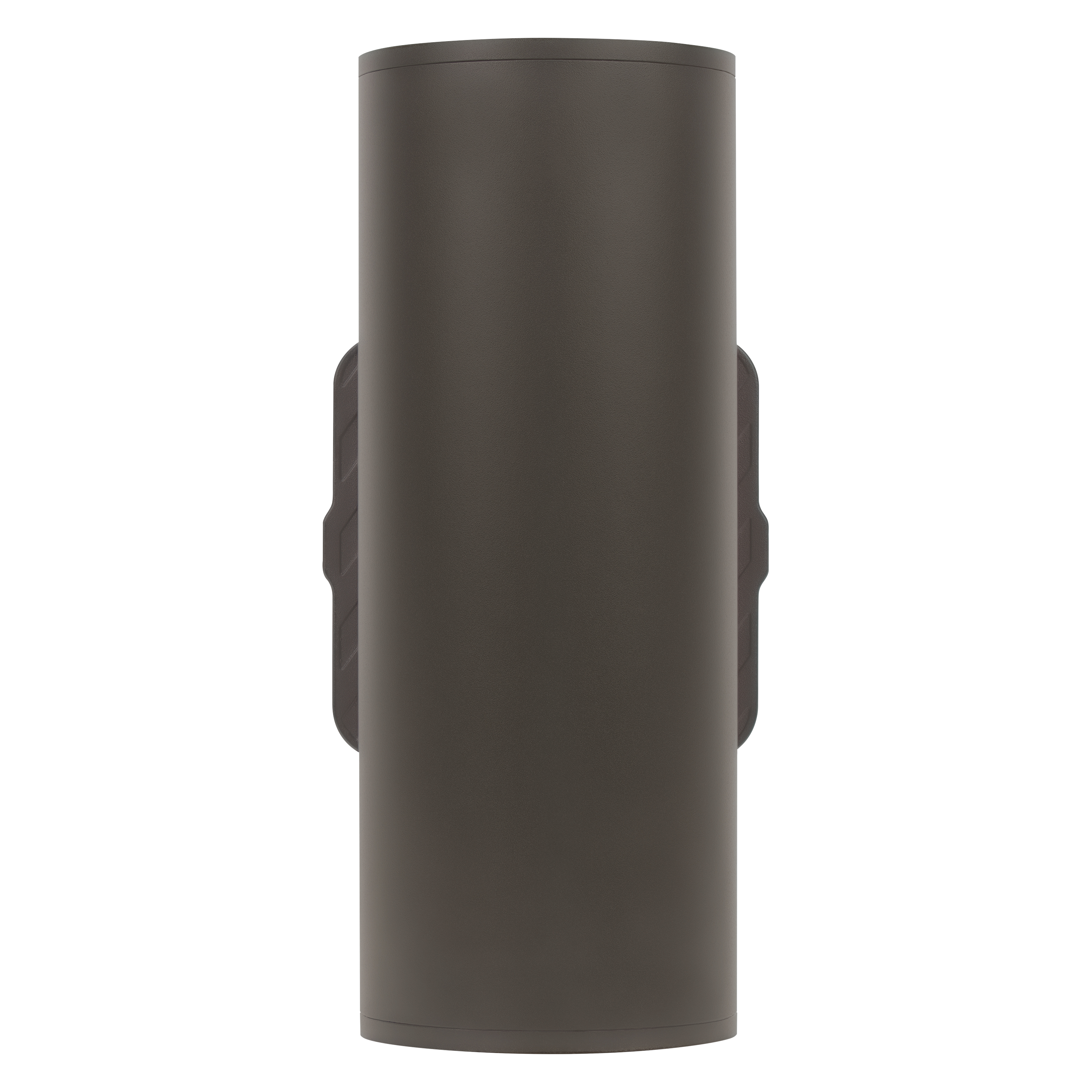

Product image: white background, upright, alternative image
CYLINDER OPTISELECT 4" BRONZE

JPG (2.53 MB)

Photometric and lighting design files

IES file (IES)
CYLINDER OPTISELECT IES SPDX

ZIP (36.65 MB)
