CYLINDER OPTI-SELECT

CYLINDER OPTI-SELECT S030 UNH D 8 SC2 R6 WH P

NAED: 66290
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Areas of application
  • Building facades
  • Entryways
  • Wall washing
Product features
  • OPTI-SELECT: narrow, medium and wide beam angles, adjustable via switch
  • Up, down, or up + down light modes
  • Up to 125 LPW
  • Selectable CCTs: 3000/4000/5000K
  • CRI > 80
  • Selectable wattage and lumen outputs
  • Integrated photocell that can be disabled in the field
Extended installation guide
OPTISELECT CYLINDER INSTALL MANUAL
PDF (3.32 MB)
Product information bulletin
LEDLUM224 LEDVANCE LUMINAIRES OPTI-SELECT CYLINDER
PDF (1.52 MB)
Electrical data
Nominal wattage 30.00 W
Nominal voltage 120…347 V
Photometrical data
Luminous flux 1650 … 3300 lm
Luminous efficacy 110 lm/W
Color temperature 3000 … 5000 K
Color rendering index Ra 80
Dimensions & Weight
Diameter 152.40 mm
Product weight 5000.00 g
Materials & Colors
Product color White
Housing color White
Body material Aluminum
Mercury content 0.0 mg
Application & Mounting
Dimmable Yes
Type of dimming 0-10V
Mounting type Surface
Application environment Outdoor
Replaceable light source No
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
0046135662904 Folding box
1		 225 mm x 161 mm x 365 mm 5158.00 g 13.22 dm³
4099854401695 Shipping box
4		 470 mm x 342 mm x 385 mm 21144.00 g 61.89 dm³

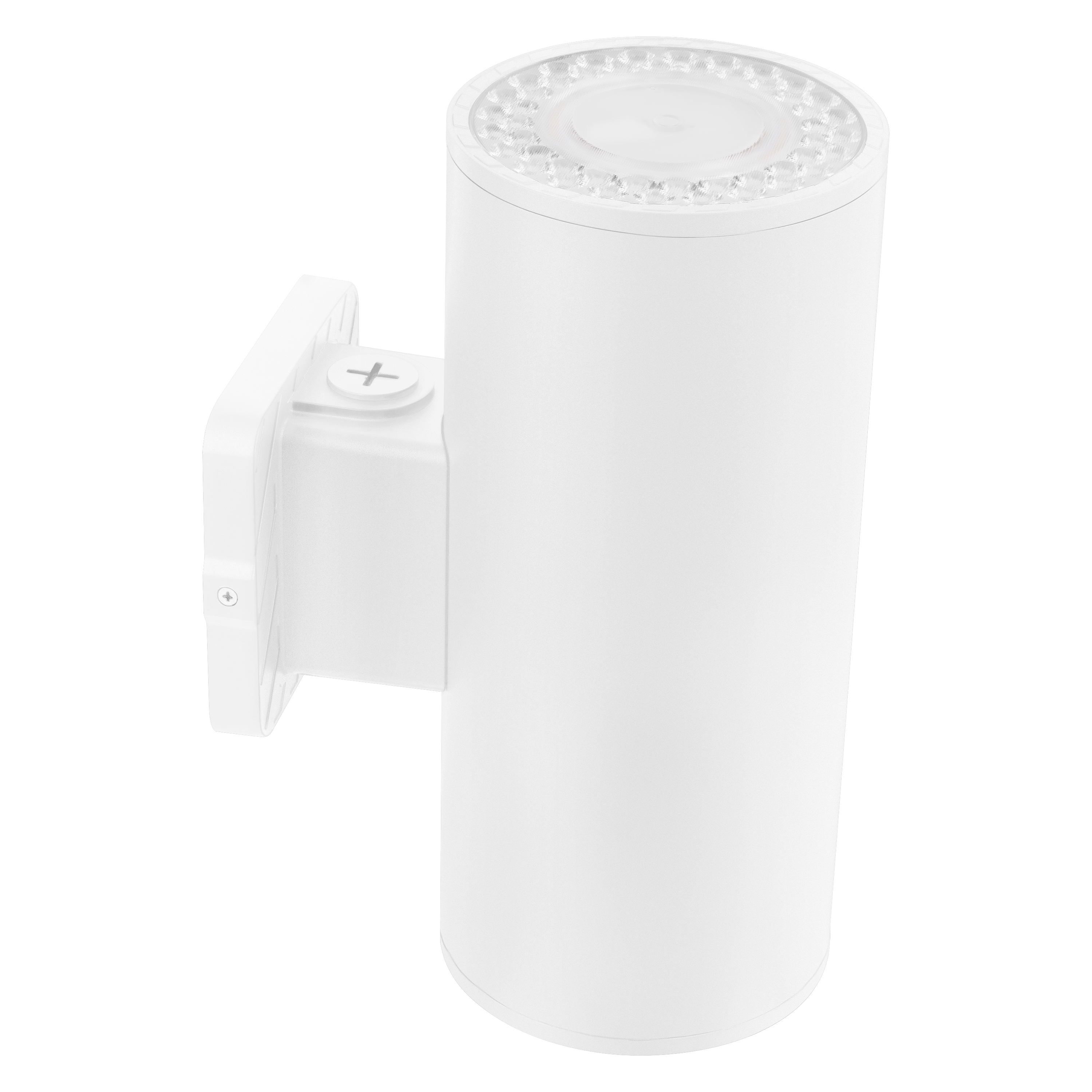

Product image: white background, diagonal with LEDVANCE logo
CYLINDER OPTISELECT WHITE 6"
JPG (2.08 MB)
Product image: white background, diagonal, alternative image
CYLINDER OPTISELECT WHITE 6"
JPG (2.02 MB)

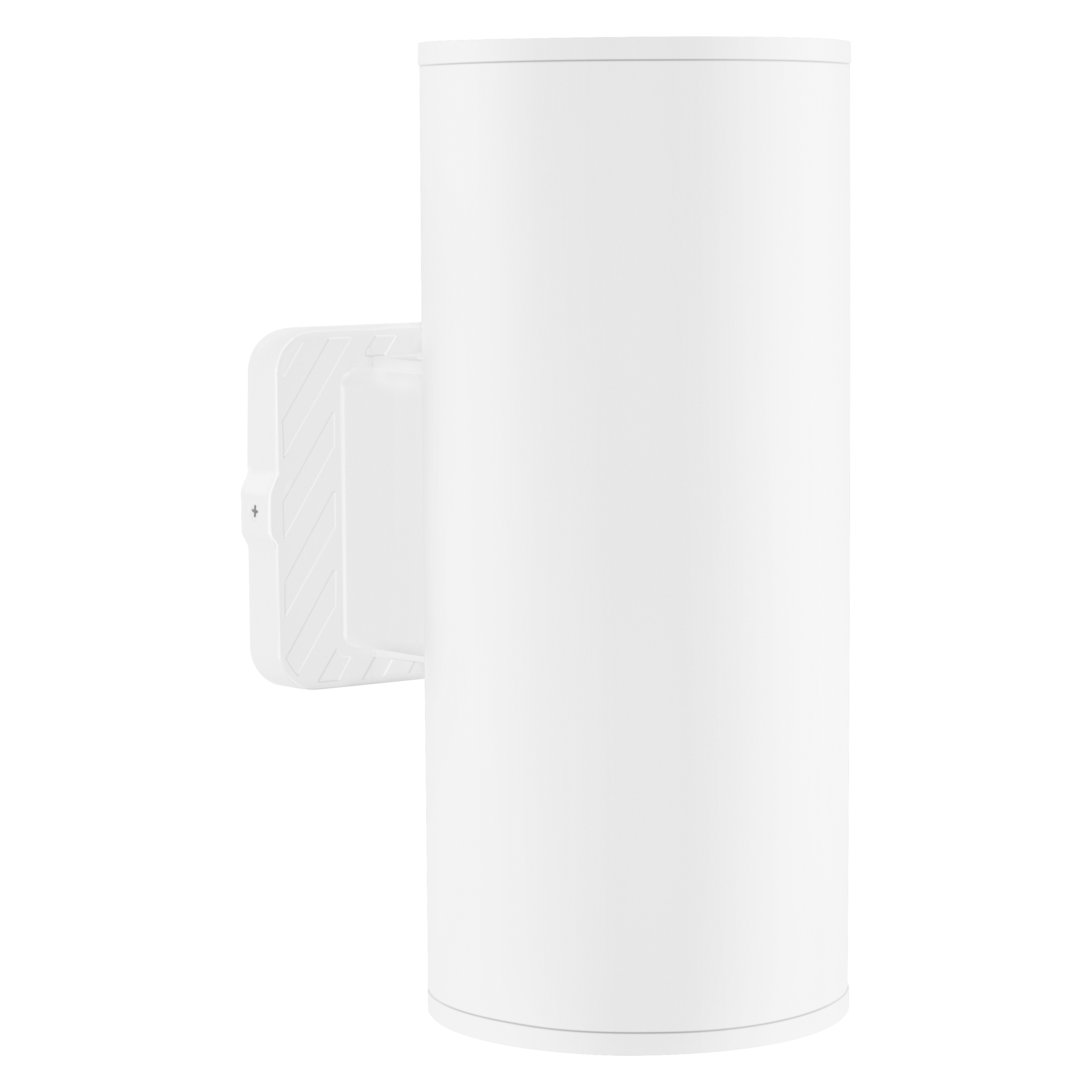

Product image: white background, upright
CYLINDER OPTISELECT WHITE 6"
JPG (1.44 MB)

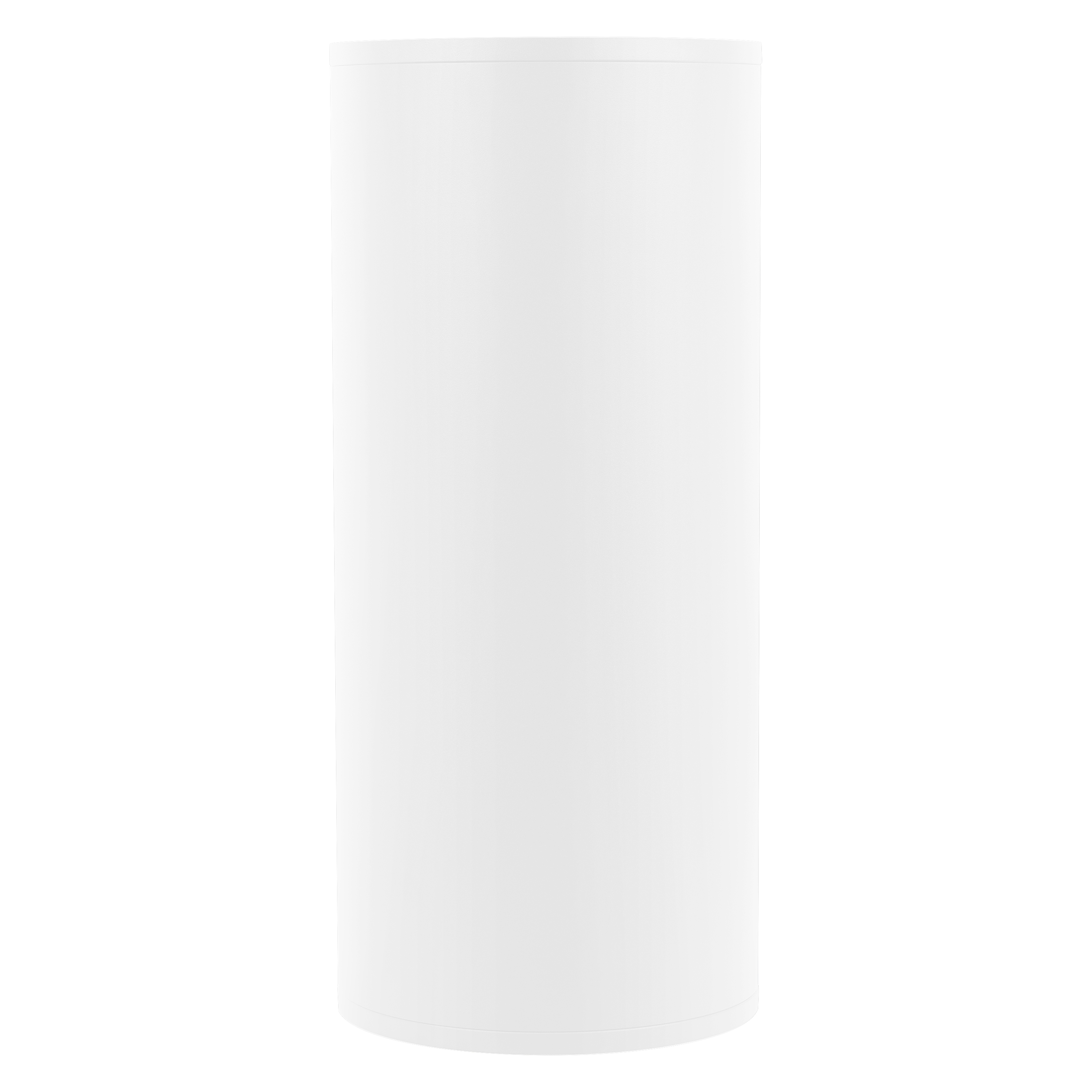

Product image: white background, upright, alternative image
CYLINDER OPTISELECT WHITE 6"
JPG (1.75 MB)
IES file (IES)
CYLINDER OPTISELECT IES SPDX
ZIP (36.65 MB)
