POLES SQUARE STEEL
POLE SQ S 25 07G 5IN TT BZ LAB
NAED: 65413
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Parking lots
- Parks
- Pedestrian walkways
- Outdoor
- Outdoor storage areas
- Small sports lighting
- Outdoor open spaces
Product features
- Poles available in seven heights: 8', 12', 15', 17', 20', 25', and 30'
- 8'-25' are 4" square; 25'-30' are 5" square
- 8'-25' are offered in 11 gauge while 25'-30' are offered in 7 gauge
- Fabricated from the highest grade structural steel
- Polycarbonate spring loaded top cover
- Bronze finish is standard. Black and white finish available
Equipment / Accessories
- Reinforced 2.5" x 4.5" cast iron hand-hole with ground screw included
- Easily secured base cover included
- Bolt circle template included
Dimensions & Weight
| Product weight | 153314.00 g |
Application & Mounting
| Replaceable light source | No |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854327919 | Shipping box 1 |
7,620 mm x 144 mm x 144 mm | 153311.00 g | 159.06 dm³ |
Application pictures

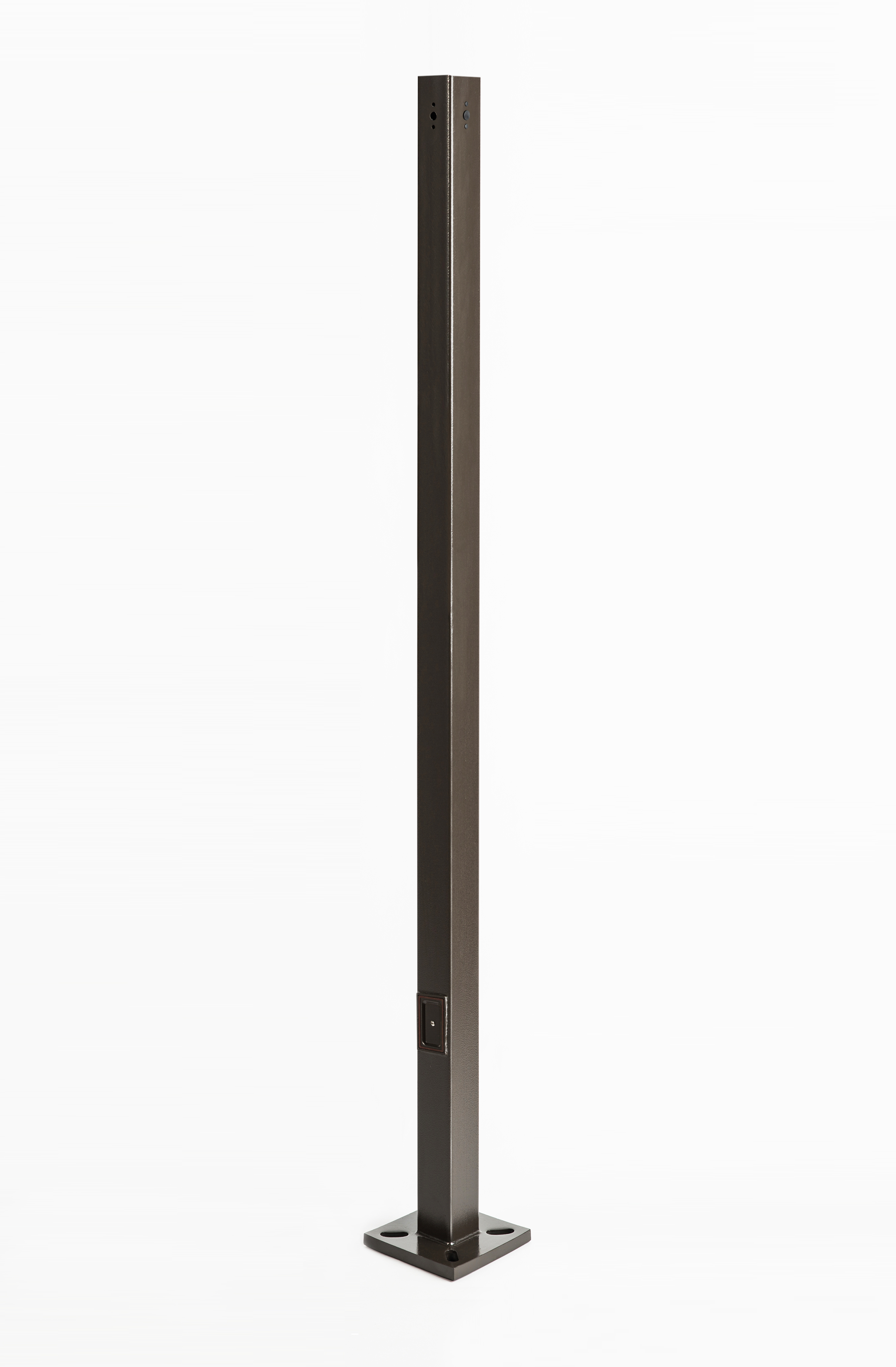

Square Straight Pole
Square Straight Pole
