tapTronic™ NFC LED Driver Constant Current Outdoor

LED NCF PROGRAMMABLE DRIVER OUTDOOR 180W UNV 1250mA DIM AUX12 IP65

NAED: 75855
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Areas of application
  • Area lights
  • Industrial high bays
  • Wall packs
  • Décor landscape
  • Cobraheads
  • Bollards
  • Hazardous locations
Product features
  • Field-programmable via free app
  • Dim to off – dim range 10-100 %
  • Constant lumen output
  • Soft start
  • End of life
  • Thermal protection
  • DC Auxiliary output
  • cULus Class P
  • IP65
  • App is multi-lingual: English/French/Spanish/Portuguese
Electrical data
Nominal wattage 180.00 W
Nominal voltage 120…277 V
Mains frequency 50…60 Hz
Dimensions & Weight
Length 240.50 mm
Width 60.96 mm
Height 38.10 mm
Product weight 1000.00 g
Capabilities
Dimmable Yes
Certificates & Standards
Type of protection IP67
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854011337 Unpacked
1
4058075792296 Shipping box
10		 463 mm x 285 mm x 144 mm 10459.00 g 19.00 dm³
Extended installation guide
installation guide 100W NFC Outdoor Constant Current LED Driver
PDF (1.7 MB)
Product information bulletin
NFC LED Drivers
PDF (1.77 MB)
Product information bulletin
NFC LED Drivers
PDF (961.36 KB)
Product information bulletin
NFC LED Drivers
PDF (997.5 KB)

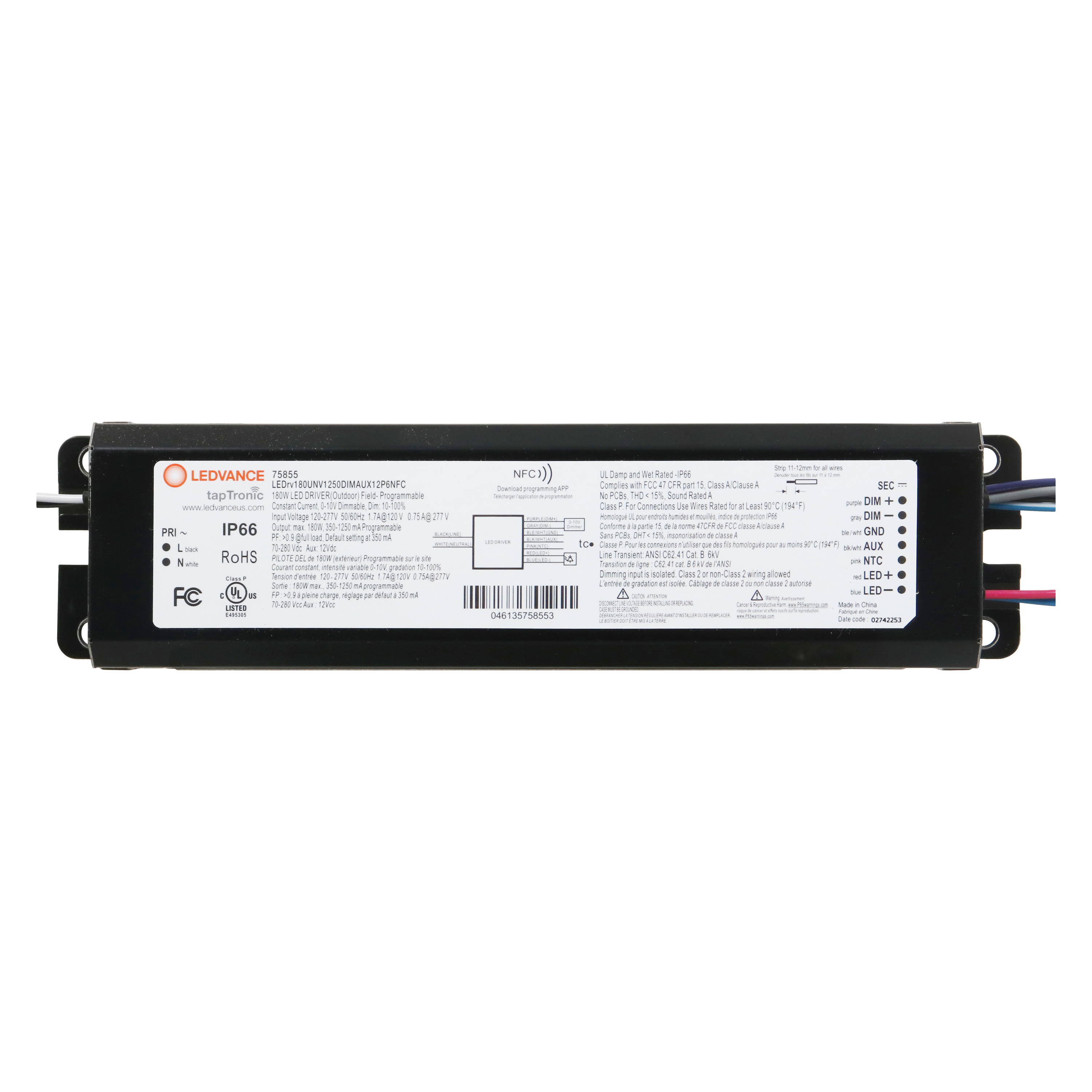

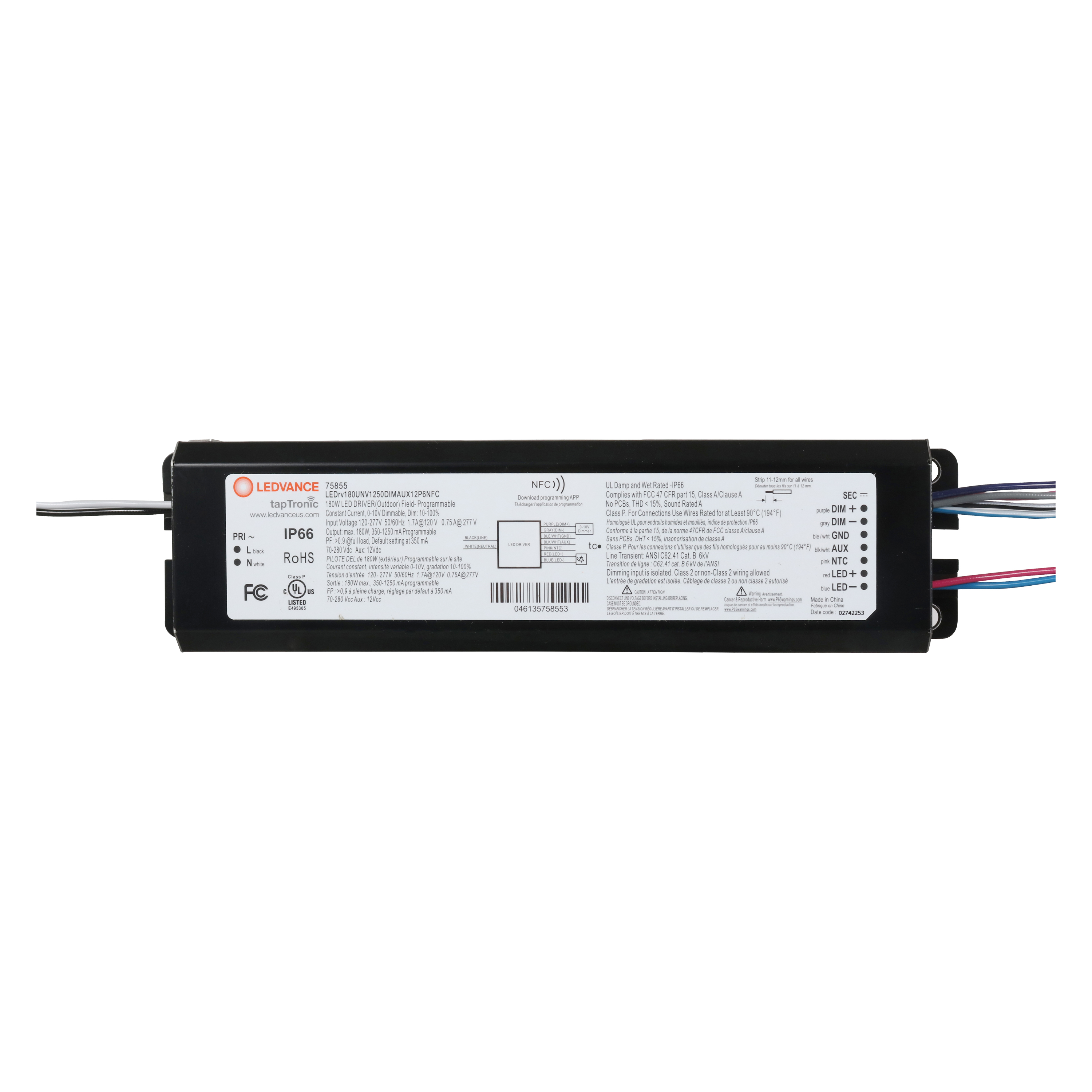

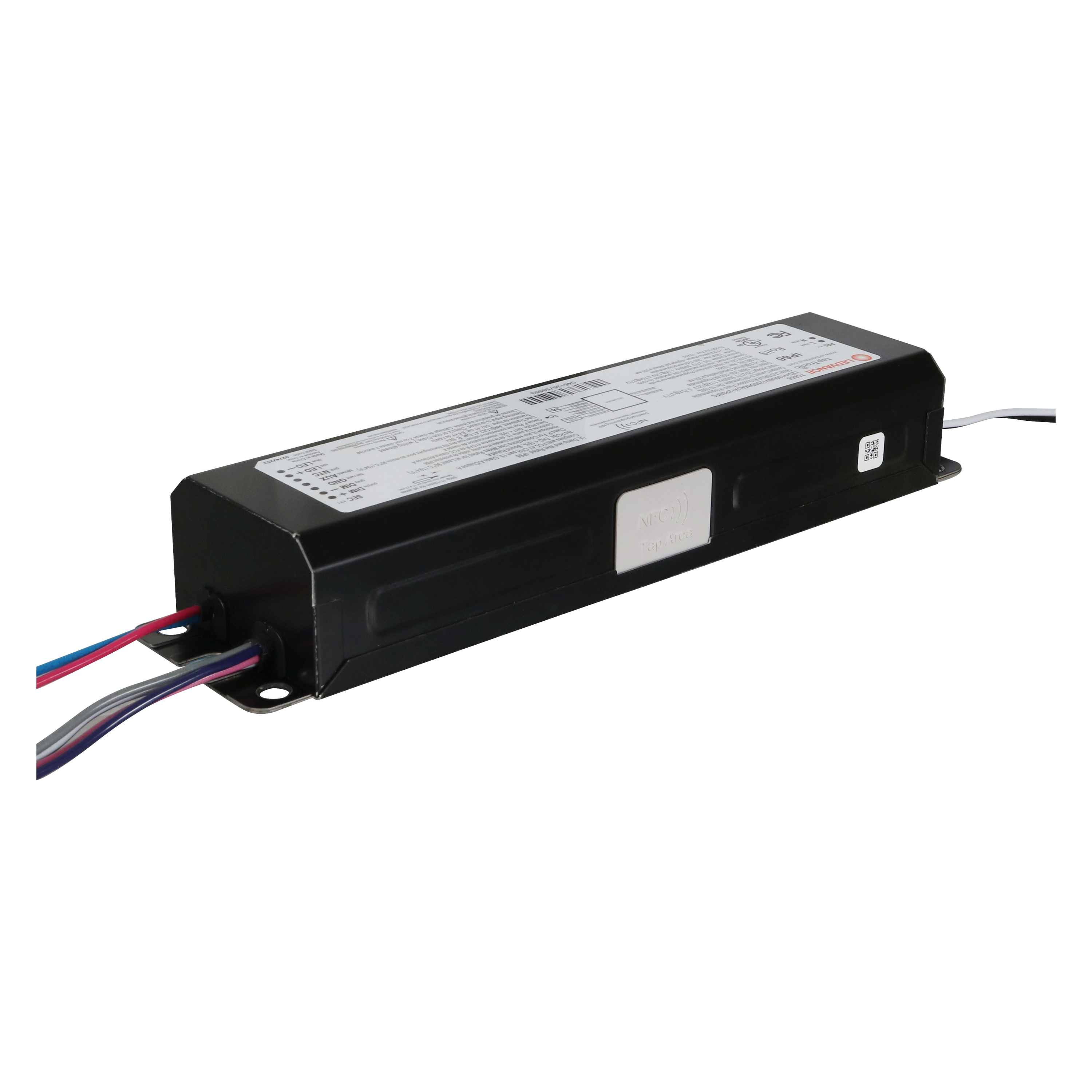

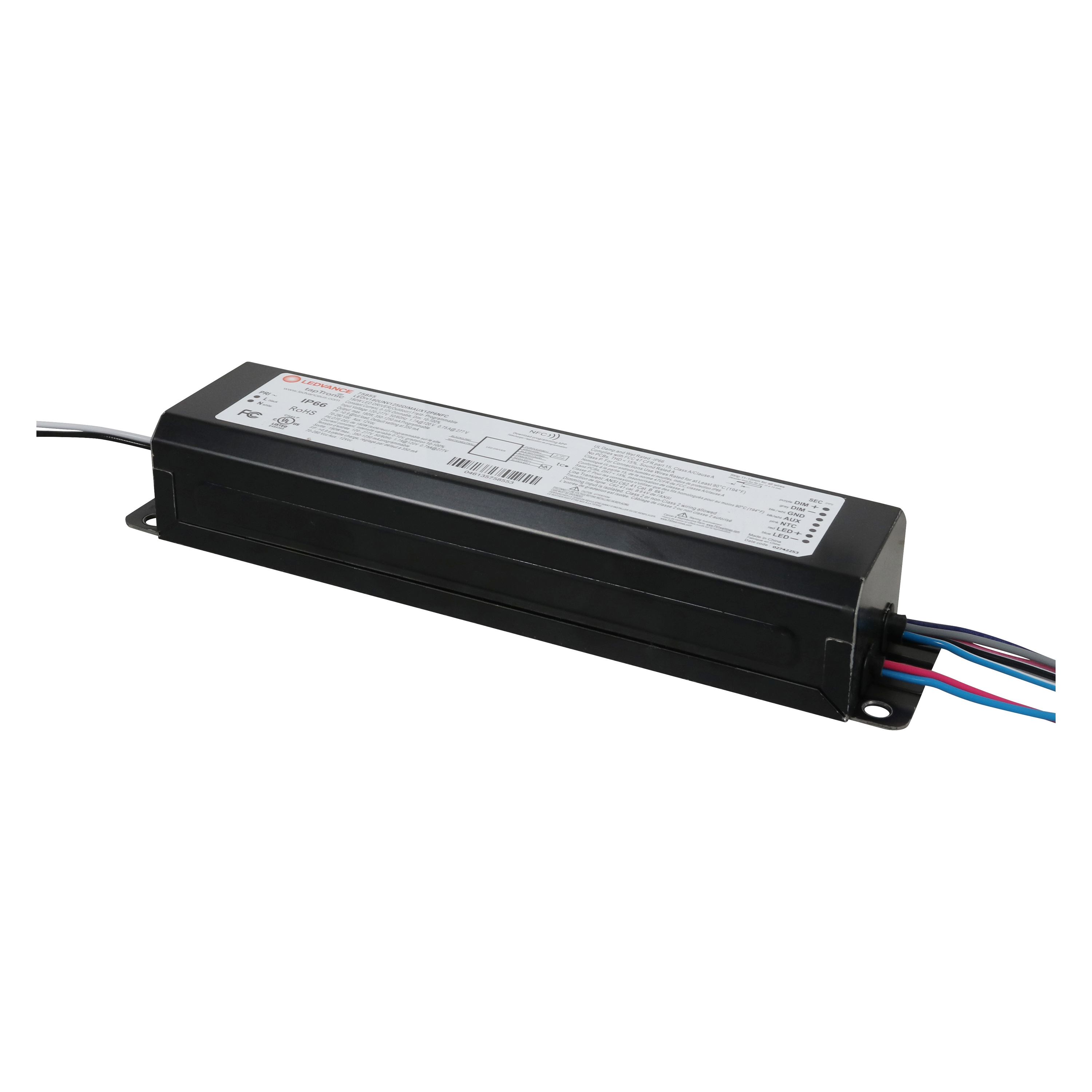

Product image: white background, diagonal
tapTronic Outdoor 180W
JPG (1.22 MB)
Product image: white background, diagonal
tapTronic Outdoor 180W
JPG (1.31 MB)
Product image: white background, diagonal
tapTronic Outdoor 180W
JPG (1.25 MB)

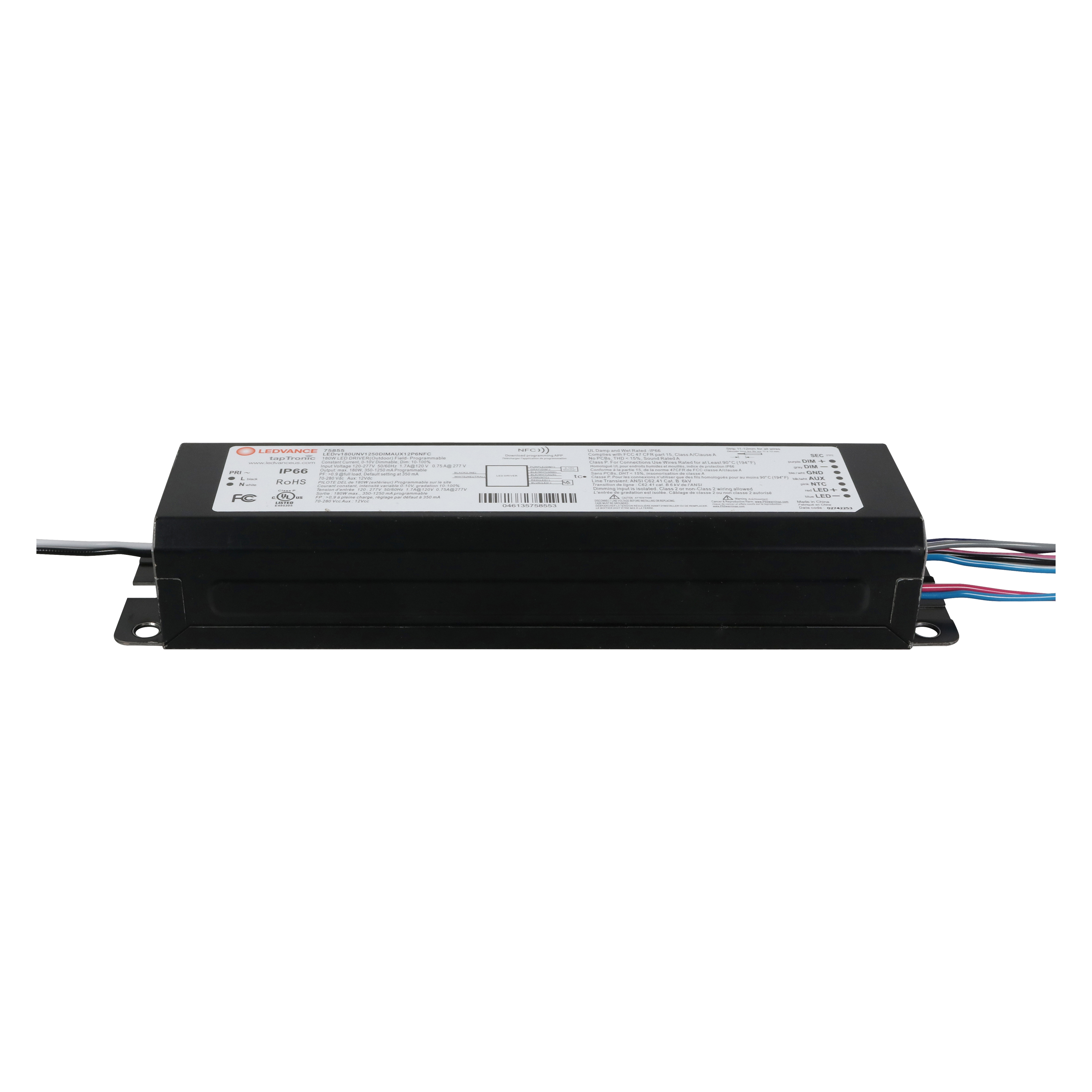

Product image: white background, horizontal
