PHASE EV™ EV Charger Commercial Generation 2
EV COMMERCIAL GEN 2 48 AMPS 4G ISO NFC TAP CHARGE
NAED: 75907
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Office parks
- Retail
- Education
- Hospitality
- Fleet
Product features
- 4.3" color LCD touch screen with 3 language options
- Rugged NEMA 4 and IP65 hardware enclosure
- IK08 impact protection
- 25 ft charge cable with SAE J1772 Type 1 connector
- Built-in WiFi and Ethernet Connectivity
- Optional 4G module with Super SIM
- Optional ISO 15118-2/3 modules for Plug-and-Charge operation
- Optional NFC Reader for contactless tap & charge payments
- Pre-configured for use with an optional subscription to ChargeLab CPO software
- OCPP Compliant or configurable for free plug & charge operation
Equipment / Accessories
- Wall mounting hardware
- Integrated cable management
Safety advice
- cETLus
- FCC Part 15 Class B; CAN ICES-003(B)/NMB-003(B)
- UL2594 compliant
- UL991, UL1998, UL2231
- ENERGY STAR
- CTEP
Electrical data
| Nominal voltage | 208…240 V |
| Mains frequency | 50…60 Hz |
Dimensions & Weight
| Length | 400.01 mm |
| Width | 240.00 mm |
| Height | 140.00 mm |
| Product weight | 8850.00 g |
Capabilities
| Dimmable | No |
Certificates & Standards
| Type of protection | IP65 |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 10046135759076 | Shipping box 1 |
510 mm x 305 mm x 265 mm | 9535.00 g | 41.22 dm³ |
Extended installation guide
Phase EV Gen 2 Installtion Guide
Phase EV Gen 2 Installtion Guide
Product information bulletin
EV003 LEDVANCE EV CHARGERS LEVEL 2 COMMERCIAL CHARGING STATION
EV003 LEDVANCE EV CHARGERS LEVEL 2 COMMERCIAL CHARGING STATION
Product image: white background, diagonal
Mounting Plate for Two Phase EV chargers
Mounting Plate for Two Phase EV chargers
Product image: white background, horizontal
Mounting Plate for Two Phase EV chargers
Mounting Plate for Two Phase EV chargers
Product image: white background, upright

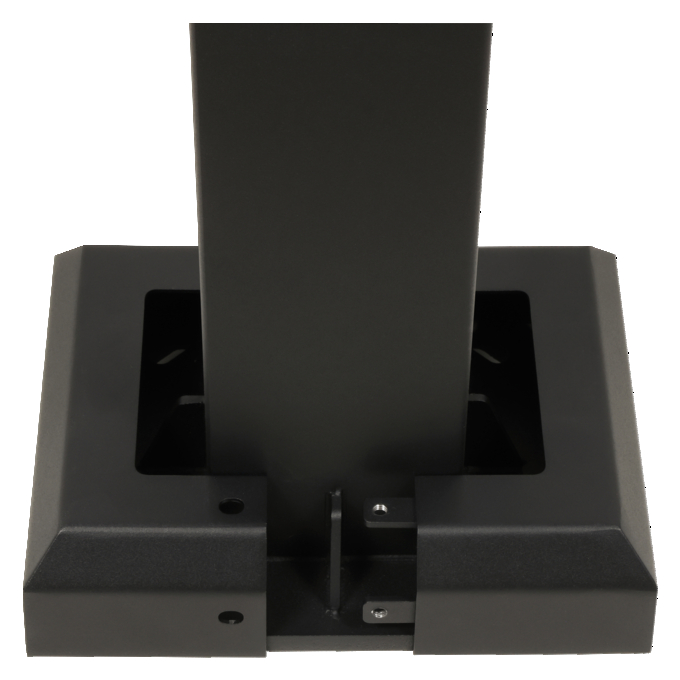

Optional Decorative Base Cover for Pedestal
