PRODUCT DETAILS
Areas of application
- Residential
- Nightlight as an orientation light or safety light for children's rooms, stairs, or bedrooms
Product features
- Canless recessed flush mount downlight with remote driver design for easy installation
- Nightlight option offers a 2200K CCT and 20lms creating a calming ambient glow
- Selectable CCTs: 2700/3000/3500/4000/5000K
- Flicker-free dimming, phase-cut down to 10 %
- Up to 83 LPW
- Energy savings up to 92 %
- Available in 120VAC
- Beam Angle of 110° FWHM
- 90 CRI, R9>50
Equipment / Accessories

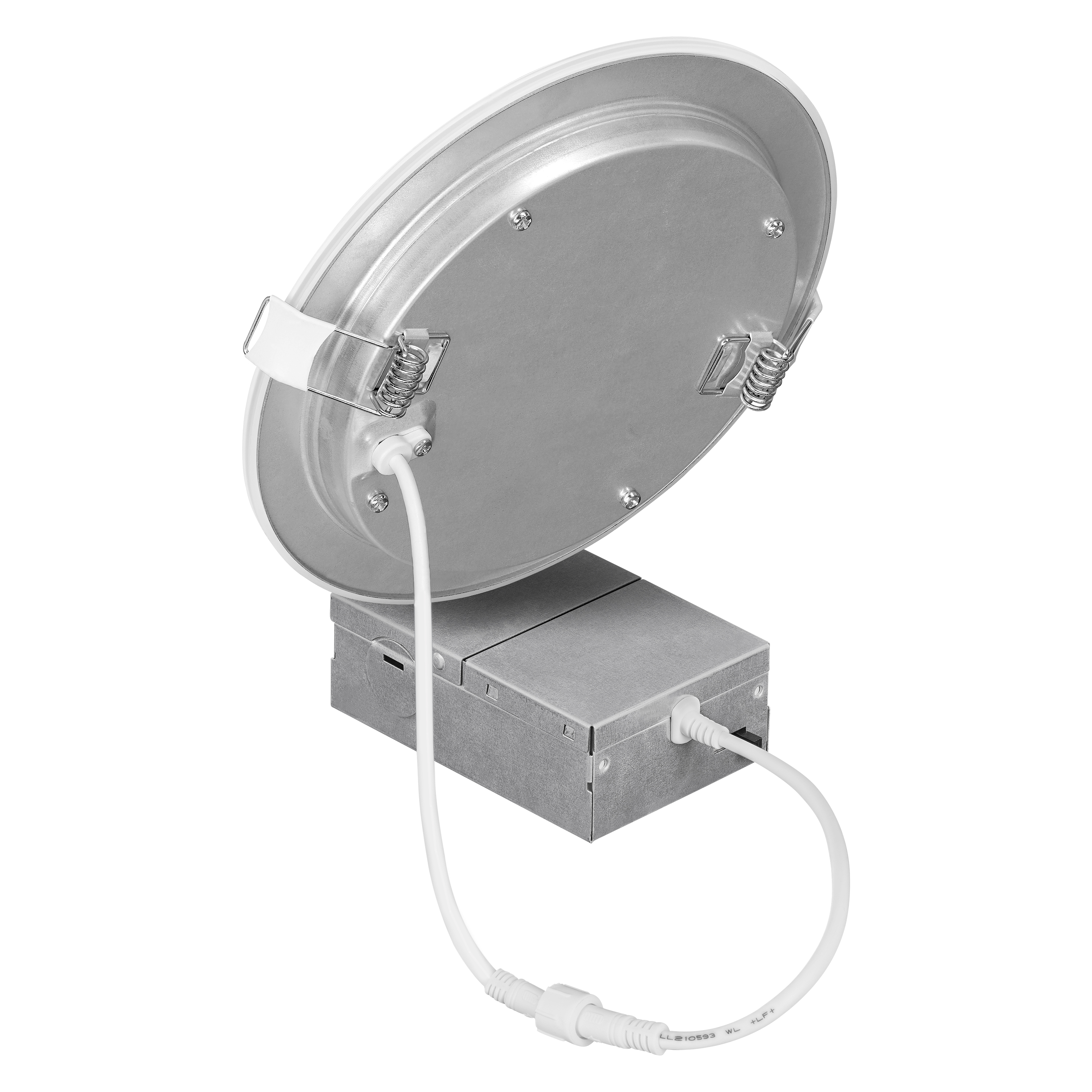

- Luminaire with interconnected cable to galvanized steel remote driver wiring enclosure via FT4 cable
- Quick connectors are included in the box with purchase of each SKU
- 3 Wire Nuts
Safety advice
- Suitable for damp locations.
- Max Ceiling Thickness 0.75" (19 mm).
Extended installation guide
6" Microdisk with nightlight feature 5CCT selectable Manual instructions
6" Microdisk with nightlight feature 5CCT selectable Manual instructions
Product information bulletin
LEDLUM208 LEDVANCE LUMINAIRES NIGHT RING MICRODISK
LEDLUM208 LEDVANCE LUMINAIRES NIGHT RING MICRODISK
Electrical data
| Nominal wattage | 12.00 W |
| Nominal voltage | 120 V |
Photometrical data
| Luminous flux | 1000 lm |
| Luminous efficacy | 90 lm/W |
| Color temperature | 2700 … 5000 K |
| Color rendering index Ra | 90 |
Dimensions & Weight
| Diameter | 175.00 mm |
| Height | 17.00 mm |
| Product weight | 302.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Plastic |
| Mercury content | 0.0 mg |
Application & Mounting
| Dimmable | Yes |
| Type of dimming | PHASE CUT |
| Mounting type | Recessed |
| Replaceable light source | No |
Certificates & Standards
| Replaceable light source (EPREL) | Not replaceable |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 0046135657931 | Folding box 1 |
185 mm x 58 mm x 180 mm | 420.00 g | 1.93 dm³ |
| 4099854236983 | Shipping box 4 |
248 mm x 204 mm x 199 mm | 1960.00 g | 10.07 dm³ |
| Product image | Product name | EAN |
|---|---|---|
| MD EXT CABLE 6FT WH | 0046135608988 | |
| MD EXT CABLE 10FT WH | 0046135608995 | |
| MD EXT CABLE 20FT WH | 0046135609008 | |
|
SLIM MD FRAME | 0046135629594 |
|
MD FRAME T-GRID | 0046135637438 |
Product image: white background, diagonal
6" Microdisk with nightlight feature
6" Microdisk with nightlight feature

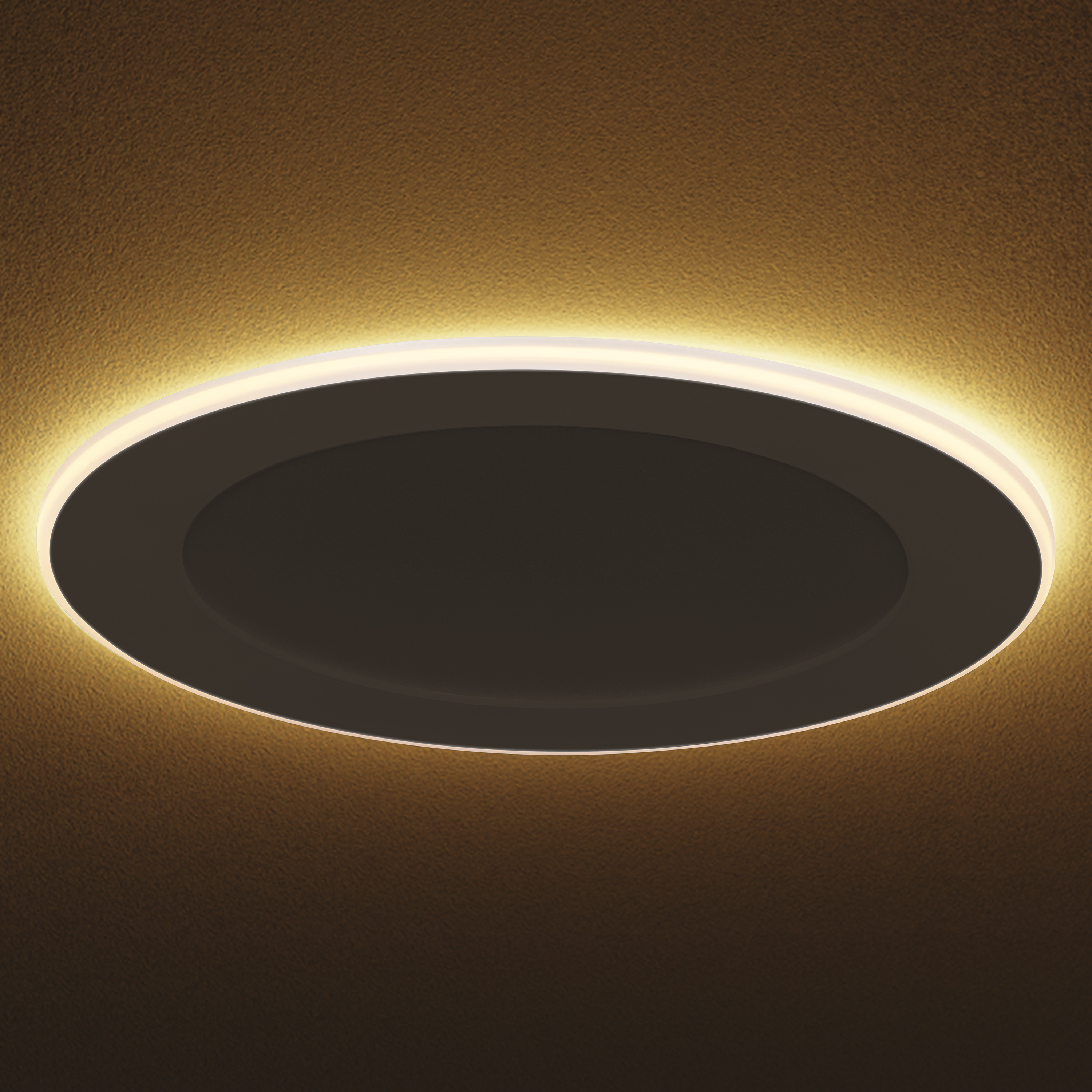

Beauty Shot
6" Microdisk with nightlight feature
6" Microdisk with nightlight feature
IES file (IES)
LEDVANCE LUMINAIRES NIGHT RING MICRODISK IES FILES
LEDVANCE LUMINAIRES NIGHT RING MICRODISK IES FILES
IES files (IES, additional)
LUMINAIRES NIGHT RING MICRODISK LM79 FILES
LUMINAIRES NIGHT RING MICRODISK LM79 FILES
